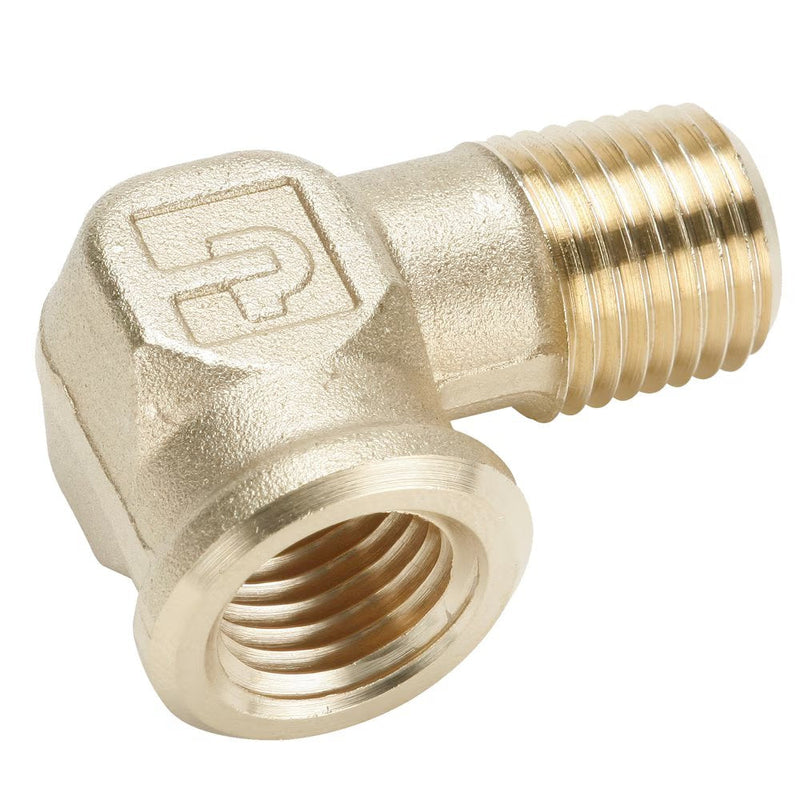

1202P-6-6 by Parker | 3/8" Female Pipe Thread x 3/8" Male Pipe Thread | 90° Elbow | Brass | Pack of 10

1202P-6-6 by Parker | 3/8" Female Pipe Thread x 3/8" Male Pipe Thread | 90° Elbow | Brass | Pack of 10

Save $34.46 Save $34.46
$86.15
$86.15 - $86.15
$86.15
$51.69
$51.69 - $51.69
$51.69

by Parker Hannifin
Pipe Fittings:90° Street Elbow 1202P-2202P

Package Quantity: 10 Units

Specifications for Variant SKU: 1202P-6-6 Parker | 10 |
Series: 1202P Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Product Features:
  • All Brass Construction
  • Meets functional requirements of SAE J530 and SAE J531
  • Threads made to dryseal standards
  • Both forgings and extrusions available
Markets:
  • Industrial
  • Construction
  • Heavy duty truck
  • Mobile
  • Factory/process automation
Applications:
  • Air Lines
  • Water Line
  • Cooling Lines
Specification:
Temperature Range: -65° to +250° F (-53.9° to +121.1° C)
Pressure Range: Up to 1000 PSI (68.9 bar)
Part Number Pipe Thread 1 Pipe Thread 2 M N Flow Diameter (D)
1202P-2-2 1/8" 1/8" .84" .46" .25"
2202PA-2-2* 1/8" 1/8" .66" .48" .22"
2202P-4-2 1/4" 1/8" .72" .45" .23"
1202P-4-4 1/4" 1/4" .90" .56" .35"
2202PA-4-4* 1/4" 1/4" .91" .72" .31"
2202P-4-6 1/4" 3/8" .97" .78" .43"
1202P-6-4 3/8" 1/4" .98" .77" .31"
1202P-6-6 3/8" 3/8" .98" .77" .42"
2202PA-6-6* 3/8" 3/8" .97" .78" .43"
1202P-6-8 3/8" 1/2" 1.53" 1.01" .56"
1202P-8-6 1/2" 3/8" 1.25" .97" .42"
2202P-8-8 1/2" 1/2" 1.25" .1.03" .56"
2202P-12-8 3/4" 1/2" 1.39" 1.10" .56"
2202P-12-12 3/4" 3/4" 1.39" 1.10" .75"

*Meets SAE Dimensions

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
