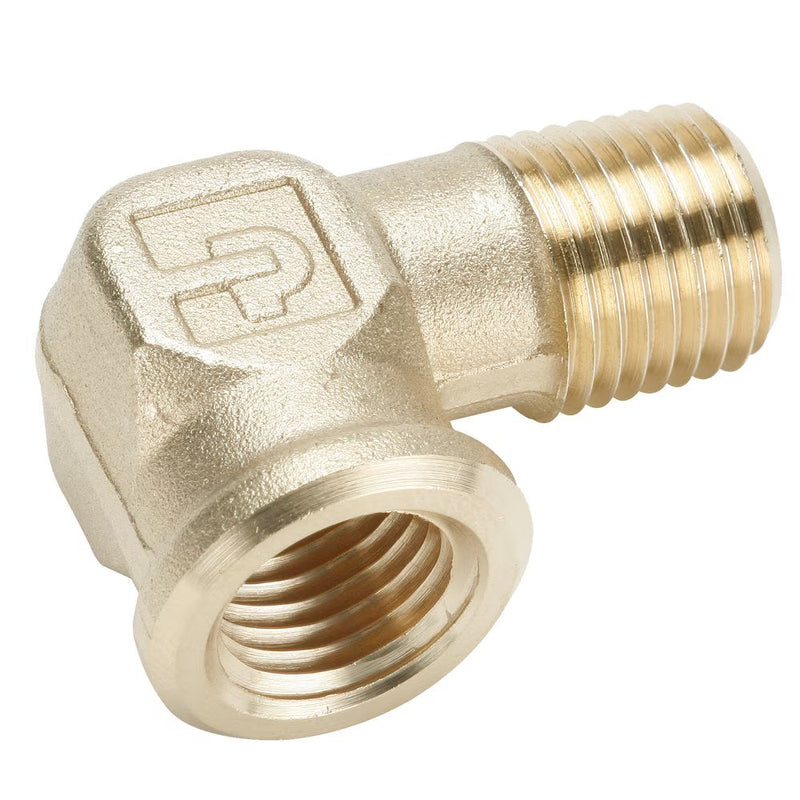

1202P-8-6 by Parker | 1/2" Female Pipe Thread x 3/8" Male Pipe Thread | 90° Elbow | Brass | Pack of 10

1202P-8-6 by Parker | 1/2" Female Pipe Thread x 3/8" Male Pipe Thread | 90° Elbow | Brass | Pack of 10

Save $11.95 Save $11.95
$131.40
$131.40 - $131.40
$131.40
$119.45
$119.45 - $119.45
$119.45

by Parker Hannifin
Pipe Fittings:90° Street Elbow 1202P-2202P

Package Quantity: 10 Units

Specifications for Variant SKU: 1202P-8-6 Parker | 10 |
Series: 1202P Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Product Features:
  • All Brass Construction
  • Meets functional requirements of SAE J530 and SAE J531
  • Threads made to dryseal standards
  • Both forgings and extrusions available
Markets:
  • Industrial
  • Construction
  • Heavy duty truck
  • Mobile
  • Factory/process automation
Applications:
  • Air Lines
  • Water Line
  • Cooling Lines
Specification:
Temperature Range: -65° to +250° F (-53.9° to +121.1° C)
Pressure Range: Up to 1000 PSI (68.9 bar)
Part Number Pipe Thread 1 Pipe Thread 2 M N Flow Diameter (D)
1202P-2-2 1/8" 1/8" .84" .46" .25"
2202PA-2-2* 1/8" 1/8" .66" .48" .22"
2202P-4-2 1/4" 1/8" .72" .45" .23"
1202P-4-4 1/4" 1/4" .90" .56" .35"
2202PA-4-4* 1/4" 1/4" .91" .72" .31"
2202P-4-6 1/4" 3/8" .97" .78" .43"
1202P-6-4 1/4" 1/8" .98" .77" .31"
1202P-6-6 3/8" 3/8" .98" .77" .42"
2202PA-6-6* 3/8" 3/8" .97" .78" .43"
1202P-6-8 3/8" 1/2" 1.53" 1.01" .56"
1202P-8-6 1/2" 3/8" 1.25" .97" .42"
2202P-8-8 1/2" 1/2" 1.25" .1.03" .56"
2202P-12-8 3/4" 1/2" 1.39" 1.10" .56"
2202P-12-12 3/4" 3/4" 1.39" 1.10" .75"

*Meets SAE Dimensions
