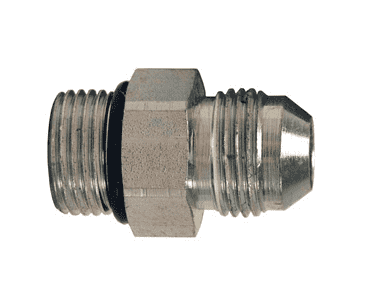

1231-12-12 Dixon Zinc Plated Steel 1-1/16"-12 Male SAE Screw Thread x 1-1/16"-12 Male SAE O-Ring Boss Thread

1231-12-12 Dixon Valve Zinc Plated Steel 1-1/16"-12 Male SAE Screw Thread x 1-1/16"-12 Male SAE O-Ring Boss Thread

Save $0.49 Save $0.49
$4.41
$4.41 - $4.41
$4.41
$3.92
$3.92 - $3.92
$3.92

ORB Fittings - Male SAE Screw Thread x Male SAE O-Ring Boss Thread - Zinc Plated Steel
Specifications for Variant SKU: 1231-12-12 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Male JIC, 3/4in Male O-Ring Boss
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number SAE Screw Thread SAE O-ring Boss Thread Working Pressure Weight (Lbs.)
1231-04-04 7/16"-20 7/16"-20 5000 PSI 0.0850
1231-04-06 7/16"-20 9/16"-18 5000 PSI 0.0600
1231-04-08 7/16"-20 3/4"-16 4500 PSI 0.1300
1231-05-05 1/2"-20 1/2"-20 5000 PSI 0.0600
1231-06-04 9/16"-18 7/16"-20 5000 PSI 0.1200
1231-06-06 9/16"-18 9/16"-18 5000 PSI 0.0700
1231-06-08 9/16"-18 3/4"-16 4500 PSI 0.1200
1231-06-10 9/16"-18 7/8"-14 3500 PSI 0.1830
1231-08-06 3/4"-16 9/16"-18 4500 PSI 0.1600
1231-08-08 3/4"-16 3/4"-16 4500 PSI 0.1300
1231-08-10 3/4"-16 7/8"-14 3500 PSI 0.1800
1231-08-12 3/4"-16 1-1/16"-12 3500 PSI 0.3150
1231-10-08 7/8"-14 3/4"-16 3500 PSI 0.2600
1231-10-10 7/8"-14 7/8"-14 3500 PSI 0.3000
1231-10-12 7/8"-14 1-1/16"-12 3500 PSI 0.3300
1231-12-10 1-1/16"-12 7/8"-14 3500 PSI 0.2800
1231-12-12 1-1/16"-12 1-1/16"-12 3500 PSI 0.3300
1231-12-16 1-1/16"-12 1-5/16"-12 3000 PSI 0.4940
1231-16-12 1-5/16"-12 1-1/16"-12 3000 PSI 0.3500
1231-16-16 1-5/16"-12 1-5/16"-12 3000 PSI 0.4600
1231-16-20 1-5/16"-12 1-5/8"-12 2500 PSI 0.7870
1231-20-16 1-5/8"-12 1-5/16"-12 2500 PSI 0.6400
1231-20-20 1-5/8"-12 1-5/8"-12 2500 PSI 0.7600
