1234-12-12 Dixon Valve | Zinc Plated Steel | 90° Elbow | -12 Male JIC 37° Flare x 1-12 Male JIC 37° Flare

1234-12-12 Dixon Valve | Zinc Plated Steel | 90° Elbow | -12 Male JIC 37° Flare x 1-12 Male JIC 37° Flare

Save $0.93 Save $0.93
$8.36
$8.36 - $8.36
$8.36
$7.43
$7.43 - $7.43
$7.43

Dixon Valve & Coupling

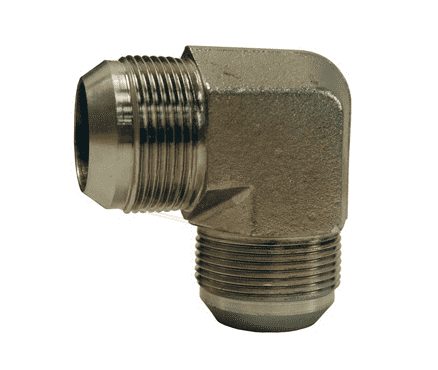

Male JIC 37° Flare x Male JIC 37° Flare - 90° Elbow - Zinc Plated Steel
Specifications for Variant SKU: 1234-12-12 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Male JIC, 3/4in Male JIC, Some Ends Match
Material(s): Zink-Plated Steel
Specifications:
  • Reference SAE 070201
  • Pressure rating at 70°F (21°C)
Part Number Male JIC 37° Flare Male JIC 37° Flare Working Pressure
at 70°F (21°C)		 Weight (Lbs.)
1234-04-04 7/16"-20 7/16"-20 5000 PSI 0.1200
1234-06-06 9/16"-18 9/16"-18 5000 PSI 0.1400
1234-08-08 3/4"-16 3/4"-16 4500 PSI 0.2200
1234-10-10 7/8"-14 7/8"-14 3500 PSI 0.3000
1234-12-12 1-1/16"-12 1-1/16"-12 3500 PSI 0.3450
1234-16-16 1-5/16"-12 1-5/16"-12 3000 PSI 0.5250
1234-20-20 1-5/8"-12 1-5/8"-12 2500 PSI 0.7700

WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
