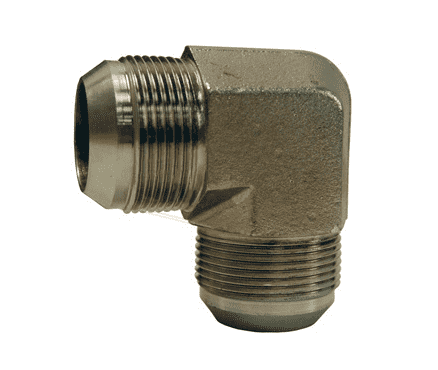

1234-04-04 Dixon Valve | Zinc Plated Steel | 90° Elbow | -04 Male JIC 37° Flare x -04 Male JIC 37° Flare

1234-04-04 Dixon Valve | Zinc Plated Steel | 90° Elbow | -04 Male JIC 37° Flare x -04 Male JIC 37° Flare

Save $1.53 Save $1.53
$3.82
$3.82 - $3.82
$3.82
$2.29
$2.29 - $2.29
$2.29

Dixon Valve & Coupling
Male JIC 37° Flare x Male JIC 37° Flare - 90° Elbow - Zinc Plated Steel
Specifications for Variant SKU: 1234-04-04 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Male JIC, 1/4in Male JIC, Some Ends Match
Material(s): Zink-Plated Steel
Specifications:
  • Reference SAE 070201
  • Pressure rating at 70°F (21°C)
Part Number Male JIC 37° Flare Male JIC 37° Flare Working Pressure
at 70°F (21°C)		 Weight (Lbs.)
1234-04-04 7/16"-20 7/16"-20 5000 PSI 0.1200
1234-06-06 9/16"-18 9/16"-18 5000 PSI 0.1400
1234-08-08 3/4"-16 3/4"-16 4500 PSI 0.2200
1234-10-10 7/8"-14 7/8"-14 3500 PSI 0.3000
1234-12-12 1-1/16"-12 1-1/16"-12 3500 PSI 0.3450
1234-16-16 1-5/16"-12 1-5/16"-12 3000 PSI 0.5250
1234-20-20 1-5/8"-12 1-5/8"-12 2500 PSI 0.7700

WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
