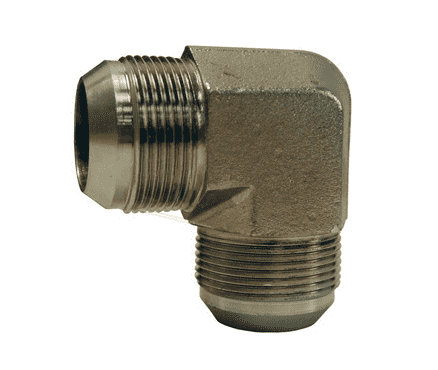

1234-08-08 Dixon Valve | Zinc Plated Steel | 90° Elbow | -08 Male JIC 37° Flare x -08 Male JIC 37° Flare

1234-08-08 Dixon Valve | Zinc Plated Steel | 90° Elbow | -08 Male JIC 37° Flare x -08 Male JIC 37° Flare

Save $2.72 Save $2.72
$6.80
$6.80 - $6.80
$6.80
$4.08
$4.08 - $4.08
$4.08

Dixon Valve & Coupling
Male JIC 37° Flare x Male JIC 37° Flare - 90° Elbow - Zinc Plated Steel
Specifications for Variant SKU: 1234-08-08 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Male JIC, 1/2in Male JIC, Some Ends Match
Material(s): Zink-Plated Steel
Specifications:
  • Reference SAE 070201
  • Pressure rating at 70°F (21°C)
Part Number Male JIC 37° Flare Male JIC 37° Flare Working Pressure
at 70°F (21°C)		 Weight (Lbs.)
1234-04-04 7/16"-20 7/16"-20 5000 PSI 0.1200
1234-06-06 9/16"-18 9/16"-18 5000 PSI 0.1400
1234-08-08 3/4"-16 3/4"-16 4500 PSI 0.2200
1234-10-10 7/8"-14 7/8"-14 3500 PSI 0.3000
1234-12-12 1-1/16"-12 1-1/16"-12 3500 PSI 0.3450
1234-16-16 1-5/16"-12 1-5/16"-12 3000 PSI 0.5250
1234-20-20 1-5/8"-12 1-5/8"-12 2500 PSI 0.7700

WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
