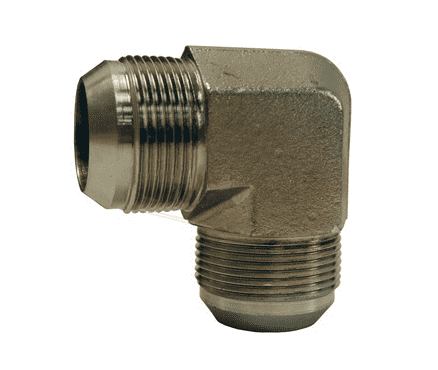

1234-06-06 Dixon Valve | Zinc Plated Steel | 90° Elbow | -06 Male JIC 37° Flare x -06 Male JIC 37° Flare

Name: 1234-06-06 Dixon Valve | Zinc Plated Steel | 90° Elbow | -06 Male JIC 37° Flare x -06 Male JIC 37° Flare
Brand: Dixon
SKU: 1234-06-06 Dixon
Price: 2.93 USD
Availability: InStock

Save $1.95

$4.88

$4.88 - $4.88

$4.88

$2.93

$2.93 - $2.93

$2.93

Dixon Valve & Coupling
Male JIC 37° Flare x Male JIC 37° Flare - 90° Elbow - Zinc Plated Steel

Specifications for Variant SKU: 1234-06-06 Dixon
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Male JIC, 3/8in Male JIC, Some Ends Match
Material(s):	Zink-Plated Steel

Specifications:
Reference SAE 070201 Pressure rating at 70°F (21°C)

Part Number	Male JIC 37° Flare	Male JIC 37° Flare	Working Pressure at 70°F (21°C)	Weight (Lbs.)
1234-04-04	7/16"-20	7/16"-20	5000 PSI	0.1200
1234-06-06	9/16"-18	9/16"-18	5000 PSI	0.1400
1234-08-08	3/4"-16	3/4"-16	4500 PSI	0.2200
1234-10-10	7/8"-14	7/8"-14	3500 PSI	0.3000
1234-12-12	1-1/16"-12	1-1/16"-12	3500 PSI	0.3450
1234-16-16	1-5/16"-12	1-5/16"-12	3000 PSI	0.5250
1234-20-20	1-5/8"-12	1-5/8"-12	2500 PSI	0.7700

WARNING: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
