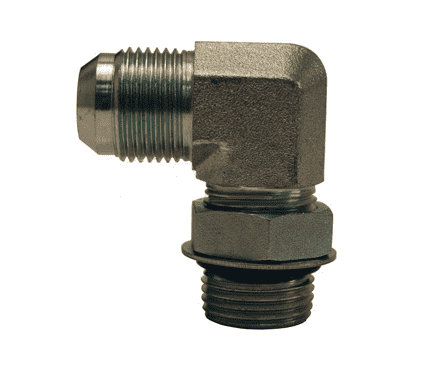

1238-04-06 Dixon Zinc Plated Steel 90 deg. 7/16"-20 Male SAE O-Ring Boss Thread x 9/16"-18 Male SAE Screw Thread

1238-04-06 Dixon Valve Zinc Plated Steel 90 deg. 7/16"-20 Male SAE O-Ring Boss Thread x 9/16"-18 Male SAE Screw Thread

Save $0.40 Save $0.40
$3.56
$3.56 - $3.56
$3.56
$3.16
$3.16 - $3.16
$3.16

ORB Fittings - 90 deg. Male SAE O-Ring Boss Thread x Male SAE Screw Thread - Zinc Plated Steel

Specifications for Variant SKU: 1238-04-06 Dixon
Shape (Orientation): 90 Degree
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number SAE O-Ring Boss Thread SAE Screw Thread Working Pressure Weight (Lbs.)
1238-04-04 7/16"-20 7/16"-20 5000 PSI 0.0850
1238-04-06 7/16"-20 9/16"-18 5000 PSI 0.1200
1238-06-04 9/16"-18 7/16"-20 5000 PSI 0.1200
1238-06-06 9/16"-18 9/16"-18 5000 PSI 0.1200
1238-08-06 3/4"-16 9/16"-18 4500 PSI 0.1600
1238-08-08 3/4"-16 3/4"-16 4500 PSI 0.2500
1238-08-10 3/4"-16 7/8"-14 3500 PSI 0.2600
1238-10-08 7/8"-14 3/4"-16 3500 PSI 0.3630
1238-10-10 7/8"-14 7/8"-14 3500 PSI 0.3000
1238-10-12 7/8"-14 1-1/16"-12 3500 PSI 0.5880
1238-12-10 1-1/16"-12 7/8"-14 3500 PSI 0.6320
1238-12-12 1-1/16"-12 1-1/16"-12 3500 PSI 0.6200
1238-12-16 1-1/16"-12 1-5/16"-12 3000 PSI 0.9740
1238-16-12 1-5/16"-16 1-1/16"-12 3000 PSI 0.5250
1238-16-16 1-5/16"-12 1-5/16"-12 3000 PSI 0.5250
1238-20-16 1-5/8"-12 1-5/16"-12 2500 PSI 0.7800
1238-20-20 1-5/8"-12 1-5/8"-12 2500 PSI 1.8320
1238-24-24 1-7/8"-12 1-7/8"-12 2000 PSI 2.4900
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
