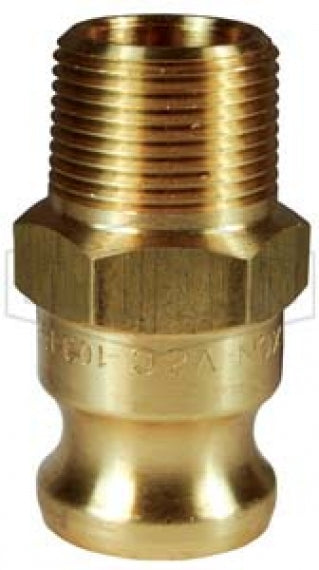

125-F-BR by Dixon Valve | Cam & Groove Adapter | Type F | 1-1/4" Adapter x 1-1/4" Male NPT | Brass

125-F-BR by Dixon Valve | Cam & Groove Adapter | Type F | 1-1/4" Adapter x 1-1/4" Male NPT | Brass

Save $3.24 Save $3.24
$45.45
$45.45 - $45.45
$45.45
$42.21
$42.21 - $42.21
$42.21

Dixon Valve
Cam & Groove Fitting | Type F | Adapter x Male NPT

Designed for use with liquids.
Specifications for Variant SKU: 125-F-BR Dixon
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 1-1/4in Male Cam & Groove, 1-1/4in Male NPT
Material(s): Brass
Safety Notes:
  • Dixon® and Boss-Lock cam & groove couplings do not interchange in the 1/2" & 8" size.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6
Aluminum
Part Number		 Aluminum
Hard Coat
Part Number		 Brass
Part Number		 Unplated
Malleable Iron
Part Number		 Plated
Malleable Iron
Part Number		 316 Stainless Steel
Part Number		 Size Max. Operating
Pressure
50-F-AL - 50-F-BR - - 50-F-SS 1/2" 150 PSI
7550-F-AL - 7550-F-BR - 7550-F-SS 3/4" x 1/2" 250 PSI
75-F-AL - 75-F-BR - 75-F-PM 75-F-SS 3/4" 250 PSI
100-F-AL - 100-F-BR - 100-F-PM 100-F-SS 1" 250 PSI
125-F-AL - 125-F-BR - - 125-F-SS 1-1/4" 250 PSI
150-F-AL 150-F-ALH 150-F-BR 150-F-MI 150-F-PM 150-F-SS 1-1/2" 250 PSI
200-F-AL 200-F-ALH 200-F-BR 200-F-MI 200-F-PM 200-F-SS 2" 250 PSI
250-F-AL - 250-F-BR - - 250-F-SS 2-1/2" 150 PSI
300-F-AL 300-F-ALH 300-F-BR 300-F-MI 300-F-PM 300-F-SS 3" 125 PSI
400-F-AL 400-F-ALH 400-F-BR 400-F-MI 400-F-PM 400-F-SS 4" 100 PSI
500-F-AL - - - - - 5" 75 PSI
600-F-AL 600-F-ALH 600-F-BR - 600-F-PM 600-F-SS 6" 75 PSI
800-F-AL - - - - - 8" 50 PSI
801-F-AL
(Boss-Lock)		 - - - - - 8" 50 PSI
