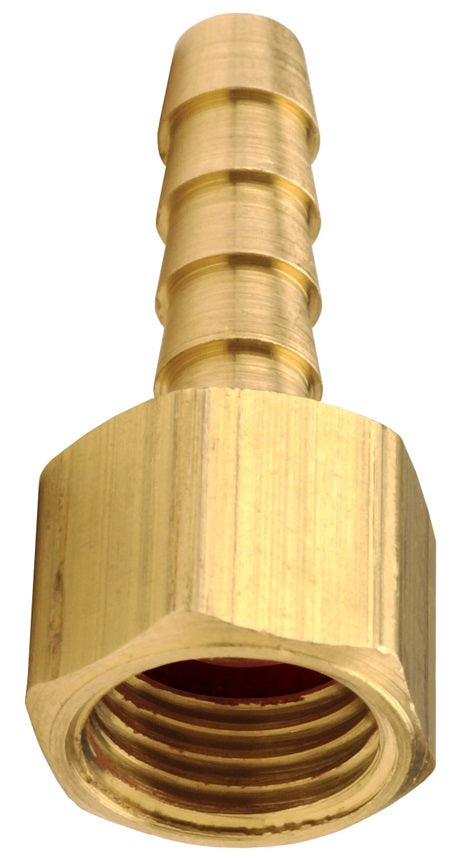

1260304C by Dixon Valve | Female Hose Barb Gasket Seat Insert | 1/4" Female NPSM Swivel x 3/16" Hose ID | Brass

1260304C by Dixon Valve | Female Hose Barb Gasket Seat Insert | 1/4" Female NPSM Swivel x 3/16" Hose ID | Brass

Save $0.54 Save $0.54
$6.45
$6.45 - $6.45
$6.45
$5.91
$5.91 - $5.91
$5.91

Dixon Valve
Female Hose Barb Gasket Seat Insert | Female NPSM Swivel x Hose Barb Gasket Seat
Specifications for Variant SKU: 1260304C Dixon
Series: 126 Series
Shape (Orientation): Straight
Ends Configuration: 3/16in Hose Barb, 1/4in Female NPSM
Material(s): Brass
Seal Material(s): Neoprene
Applicable Specs & Approvals: Swivel
Construction:
  • Gasket seat type.
Safety Notes:
  • All standard hose fittings are intended for use with hose clamps or crimped ferrules.
Previous
Part Number		 Brass
Part Number		 Female NPSM Swivel Hose I.D.
126-0202 1260202C 1/8" 1/8"
126-0302 1260302C 1/8" 3/16"
126-0304 1260304C 1/4" 3/16"
126-0402 1260402C 1/8" 1/4"
126-0404 1260404C 1/4" 1/4"
126-0406 1260406C 3/8" 1/4"
126-0504 1260504C 1/4" 5/16"
126-0604 1260604C 1/4" 3/8"
126-0606 1260606C 3/8" 3/8"
126-0608 1260608C 1/2" 3/8"
126-0806 1260806C 3/8" 1/2"
126-0808 1260808C 1/2" 1/2"
126-1212 1261212C 3/4" 3/4"
