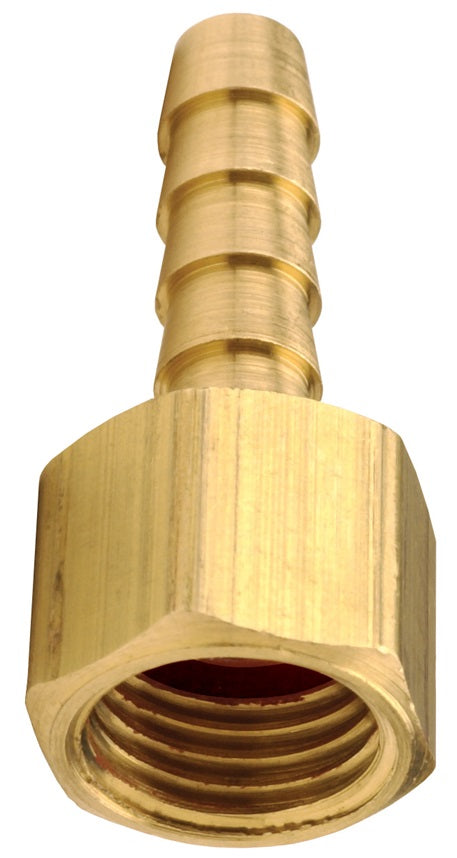

1260806C by Dixon Valve | Female Hose Barb Gasket Seat Insert | 3/8" Female NPSM Swivel x 1/2" Hose ID | Brass

1260806C by Dixon Valve | Female Hose Barb Gasket Seat Insert | 3/8" Female NPSM Swivel x 1/2" Hose ID | Brass

Save $0.70 Save $0.70
$8.18
$8.18 - $8.18
$8.18
$7.48
$7.48 - $7.48
$7.48

Dixon Valve
Female Hose Barb Gasket Seat Insert | Female NPSM Swivel x Hose Barb Gasket Seat
Specifications for Variant SKU: 1260806C Dixon
Series: 126 Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Hose Barb, 3/8in Female NPSM
Material(s): Brass
Seal Material(s): Neoprene
Applicable Specs & Approvals: Swivel
Construction:
  • Gasket seat type.
Safety Notes:
  • All standard hose fittings are intended for use with hose clamps or crimped ferrules.
Previous
Part Number		 Brass
Part Number		 Female NPSM Swivel Hose I.D.
126-0202 1260202C 1/8" 1/8"
126-0302 1260302C 1/8" 3/16"
126-0304 1260304C 1/4" 3/16"
126-0402 1260402C 1/8" 1/4"
126-0404 1260404C 1/4" 1/4"
126-0406 1260406C 3/8" 1/4"
126-0504 1260504C 1/4" 5/16"
126-0604 1260604C 1/4" 3/8"
126-0606 1260606C 3/8" 3/8"
126-0608 1260608C 1/2" 3/8"
126-0806 1260806C 3/8" 1/2"
126-0808 1260808C 1/2" 1/2"
126-1212 1261212C 3/4" 3/4"
