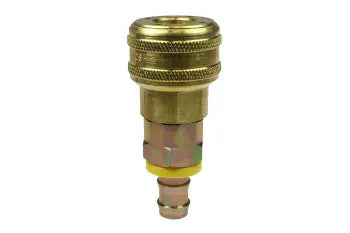

128AL by Coilhose | Coilflow™ Automatic Industrial Interchange Coupler | 1/2" Body Size | 1/2" Lock-on Hose Barb | Straight | Brass (Type 12)

Save $8.43

$75.87

$75.87 - $75.87

$75.87

$67.44

$67.44 - $67.44

$67.44

Coilhose Pneumatics - Couplers & Connectors - Coilflow™ Couplers & Connectors - Manual - Industrial Interchange 1/2" Body Size (Type 13)

Quantity

Specifications for Variant SKU: 128AL Coilhose
Brand:	Coilflow
Shape (Orientation):	Straight
Material(s):	Brass

Overview:
Coilflow™ Automatic Industrial Series Couplers are designed for stationary mounting where a simple "one handed" push-to-connect operation is desirable. These automatic couplers feature a compact size, quality all-brass, rugged construction and are interchangeable with all other manufacturer's Industrial interchanges. Automatic couplers are available in four different body sizes with male or female thread connectors up to 3/4" NPT; also with hose barb up to 1/2" I.D. hose. These couplers will accept all Coilhose Industrial interchange connectors as well as other manufacturers' connectors which conform to MIL-C4109 specifications. Manual connectors are engineered to interchange with the Automotive Tru-Flate interchange designs of other manufacturers. Connectors are machined from steel, then plated to provide years of service. Steel connectors offer a harder sealing surface that is more resistance to dings and scratches.
Features:
Automatic Couplers offer a durable connection with years of service. Easy, One-Handed Connection Manual Couplers offer a durable connection with years of service. Connector's plated steel construction contains sealing surface, even in adverse conditions. Knurled body enhances grip. Drag guard prevents accidental disconnection. Made in USA

Body Size:	1/2"	Type:	Type 13
Interchange:	Automotive Tru-Flate	Style:	Couplers: Automatic Connectors: Manual
Locking Device:	Couplers: 5 Pawls	Internal Valve:	Zinc-Plated Steel
Body Material:	Couplers: Brass Connectors: Zinc-Plated Steel	Sleeve Material:	Couplers: Brass Connectors: Zinc-Plated Steel
Maximum Input Pressure:	300 PSI	Temperature Range:	-40°F to 250°F
Seals:	Nitrile (Buna N)

Thread & Barb Size	Part No. Female		Part No. Male		Part No. Hose Barb		Part No. Lock-on Hose Barb
	Coupler	Connector	Coupler	Connector	Coupler	Connector	Coupler

3/8"	123A	1304	121A	1303	-	-	-
1/2"	120A	1302	122A	1301	128A	1308	128AL
