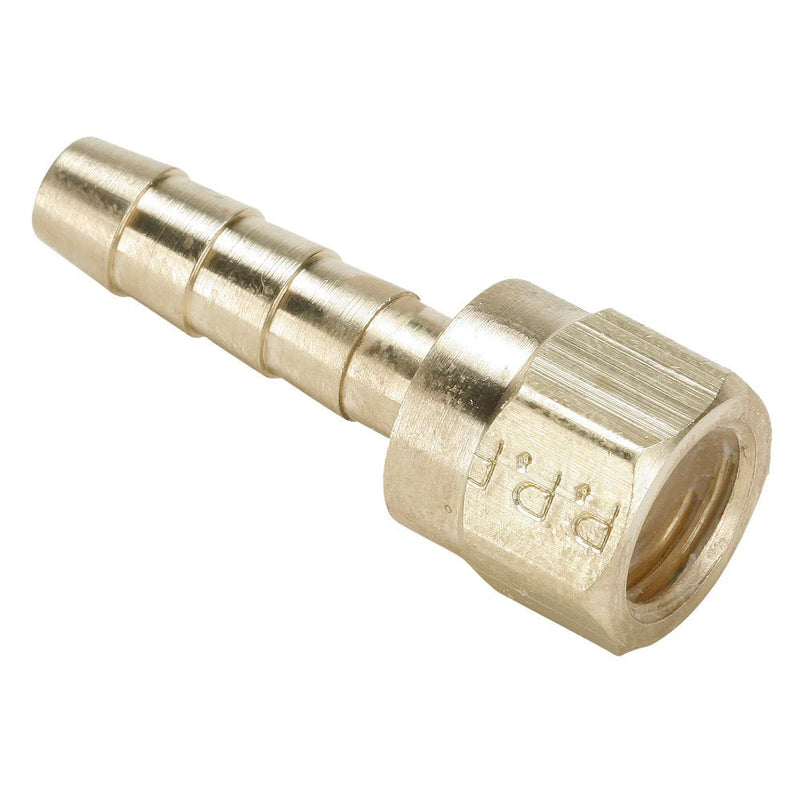

128HBLSV-4-4 by Parker | Hose Barb Fittings | 1/4" Hose Barb x 1/4" Female Swivel NPSM Thread | 5/8" Hex | 1.50" Length | Straight | Brass | Pack of 25

Save $45.17

$112.93

$112.93 - $112.93

$112.93

$67.76

$67.76 - $67.76

$67.76

by Parker Hannifin
Hose Barb Fittings:Hose Barb to Swivel Female Ball-End 128HBLSV

Package Quantity: 25 Units

Specifications for Variant SKU: 128HBLSV-4-4 Parker \| 25 \|
Series:	128HBLSV Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Swivel

Specification:
Product Features:	All brass construction Fluorocarbon O-rings NPTF, SAE straight thread, metric thread ends Reusable Clamp required
Markets:	Industrial Construction Heavy duty truck Mobile
Applications:	Air Lines Water Line Cooling Lines
Temperature Range:	-40° to +160° F (-40° to +71.1° C)
Pressure Range:	Up to 150 PSI (10.3 bar)


Part Number	ID Hose Size	Female NPSM Thread	Hex (C)	L	M	OD	Flow Diameter (D)
128HBLSV-4-4	1/4"	1/4"	5/8"	1.50"	.97"	.290"	.187"
128HBLSV-5-4	5/16"	1/4"	5/8"	1.50"	.97"	.353"	.250"
128HBLSV-6-4	3/8"	1/4"	5/8"	1.63"	.97"	.415"	.250"
128HBLSV-6-6	3/8"	3/8"	3/4"	1.50"	.97"	.415"	.281"
128HBLSV-8-8	1/2"	1/2"	29/32"	1.52"	.97"	.530"	.375"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.

Shop Parts by Parker Fluid System Connectors Division
