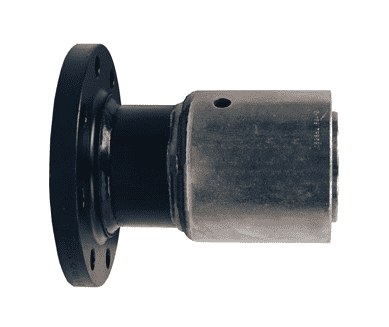

128P2SO15 Dixon 8" Carbon Steel External Swage Fixed Flange Assembly - Hose OD from 9-25/64" to 9-32/64"

128P2SO15 Dixon Valve 8" Carbon Steel External Swage Fixed Flange Assembly - Hose OD from 9-25/64" to 9-32/64"

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

External Swage Flanged Assemblies - Fixed Flange - Carbon Steel
Specifications for Variant SKU: 128P2SO15 Dixon
Shape (Orientation): Straight
Ends Configuration: 8in 150# Flange, 8in Hose Barb
Material(s): Carbon Steel
Features:
  • 150# ASA flange drilling.
  • The Holedall coupling provides long-lasting efficiency and safety.
  • The coupling system requires no bolts and results in a clean coupling with no protrusions.
  • Carbon steel stem, ferrule and flange.
Safety Notes:
  • Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that particular hose end OD.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
Hose OD
Part Number Hose ID From To Weight (Lbs.)
32P1SO15 2" 2-28/64" 2-40/64" 10.0000
32P2SO15 2" 2-41/64" 2-48/64" 10.0000
32P3SO15 2" 2-49/64" 2-56/64" 10.0000
48P1SO15 3" 3-30/64" 3-40/64" 15.6000
48P2SO15 3" 3-41/64" 3-48/64" 20.0000
48P3SO15 3" 3-49/64" 3-56/64" 15.7000
64P1SO15 4" 4-40/64" 4-44/64" 24.5000
64P2SO15 4" 4-45/64" 4-52/64" 24.0000
64P3SO15 4" 4-53/64" 4-60/64" 30.0000
96P1SO15 6" 7" 7-4/64" 39.0000
96P2SO15 6" 7-5/64" 7-12/64" 43.0900
96P3SO15 6" 7-13/64" 7-20/64" 43.3300
128P1SO15 8" 9-20/64" 9-24/64" 81.0000
128P2SO15 8" 9-25/64" 9-32/64" 75.5500
128P3SO15 8" 9-33/64" 9-40/64" 76.0000
