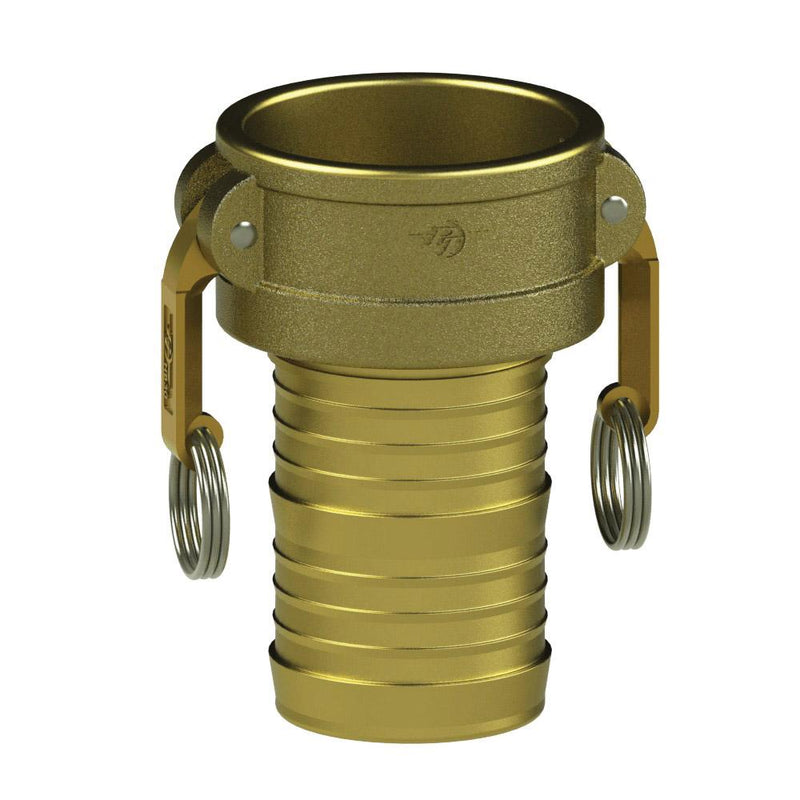

1290330 (30C) by PT-Coupling | Cam & Groove Fitting | Type C | 3" Coupler x 3" Hose Shank | Brass/HBS | Buna-N Seal

Save $88.42

$238.22

$238.22 - $238.22

$238.22

$149.80

$149.80 - $149.80

$149.80

PT Coupling
Cam and Groove (Camlock) Fitting | Type C | Coupler x Hose Shank | Brass/HBS | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1290330 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	3in Female Cam & Groove, 3in Hose Barb
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
PT's specially designed multi-barbed shank with interlocking ring allows for attachment via original PUNCH-LOK® center punch clamps, or by an interlocked PROGRIP™ C-50 ferrule or sleeve. HBS cam arms are made of 300 series Stainless Steel. 8, 10 and 12 in. couplers are 4-cam designs with the STA-LOK® positive locking feature. Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Coupler Size	Hose Shank Size	O.D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Exposed Length (D)	Inside Diameter (E)	Min. Inside Diameter (E)	Engagement Length	Max. Allowable Working Press. (PSI)*	Weight
E05C	1290301	1/2"	1/2"	4.21"	1.82"	2.69"	1.25"	0.38"	0.33"	1.03"	250 PSI	0.43 lbs.
07C	1290307	3/4"	3/4"	4.51"	2.11"	3.55"	1.25"	0.53"	0.40"	0.97"	250 PSI	0.655 lbs.
10C	1290310	1"	1"	5.10"	2.44"	4.06"	1.56"	0.78"	0.69"	1.19"	250 PSI	0.979 lbs.
12C	1290312	1-1/4"	1-1/4"	6.86"	3.26"	4.44"	1.84"	0.97"	0.88"	1.44"	250 PSI	1.696 lbs.
15C	1290315	1-1/2"	1-1/2"	7.16"	3.56"	4.82"	1.88"	1.22"	1.15"	1.48"	250 PSI	2.129 lbs.
20C	1290320	2"	2"	7.54"	3.94"	5.53"	2.15"	1.71"	1.60"	1.75"	250 PSI	2.994 lbs.
25C	1290325	2-1/2"	2-1/2"	8.03"	4.43"	5.93"	2.18"	2.16"	2.06"	1.75"	200 PSI	4.274 lbs.
30C	1290330	3"	3"	9.56"	5.46"	6.32"	2.27"	2.65"	2.55"	1.84"	200 PSI	5.372 lbs.
40C	1290340	4"	4"	10.66"	6.56"	6.64"	2.34"	3.53"	3.43"	1.87"	150 PSI	9.552 lbs.

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
