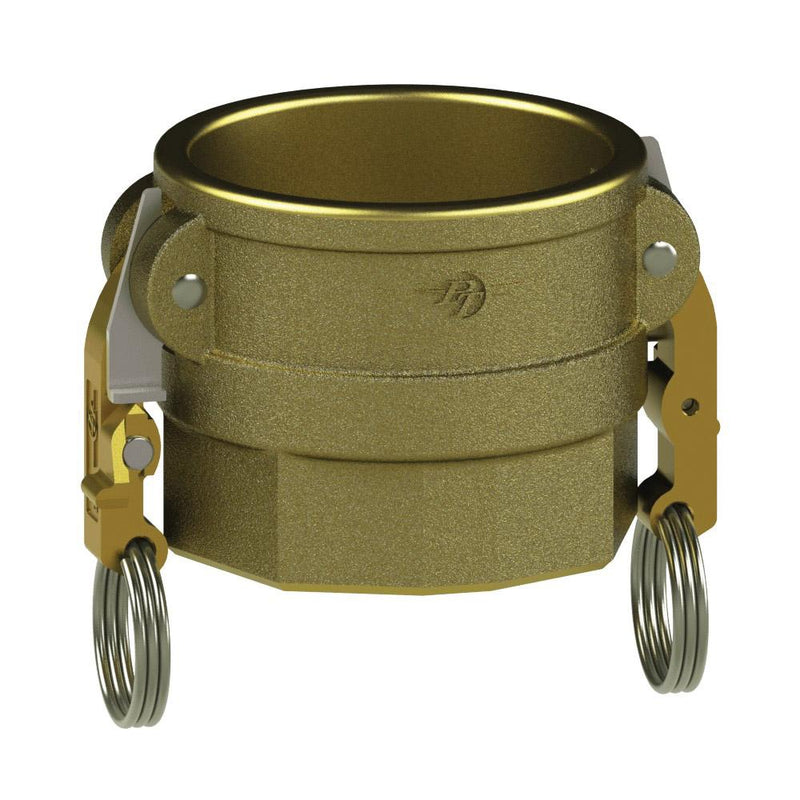

1290420L2 (20D SLII) by PT-Coupling | STA-LOK® II Cam & Groove Adapter | Type D | 2" Coupler x 2" Female NPT | Brass/SLS | Buna-N Seal

Save $11.66

$104.90

$104.90 - $104.90

$104.90

$93.24

$93.24 - $93.24

$93.24

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Adapter | Type D | Coupler x Female NPT | Brass/SLS | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 1290420L2 PT-Coupling
Series:	STA-LOK II
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	2in Female Cam & Groove, 2in Female NPT
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile

Overview:
STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
SLS cam arms are made of 316 Stainless Steel. Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals. Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA


Part Name	Item #	Coupler Size	Female NPT Thread	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
10D SLII	1290410L2	1"	1"	5.10"	2.44"	2.50"	0.97"	250 PSI
12D SLII	1290412L2	1-1/4"	1-1/4"	6.86"	3.26"	2.70"	1.25"	250 PSI
15D SLII	1290415L2	1-1/2"	1-1/2"	7.16"	3.56"	2.80"	1.50"	250 PSI
20D SLII	1290420L2	2"	2"	7.54"	3.94"	3.10"	1.88"	250 PSI
25D SLII	1290425L2	2-1/2"	2-1/2"	8.03"	4.43"	3.40"	2.38"	200 PSI
30D SLII	1290430L2	3"	3"	9.56"	5.46"	3.50"	2.88"	200 PSI
40D SLII	1290440L2	4"	4"	10.66"	6.56"	3.90"	3.60"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
