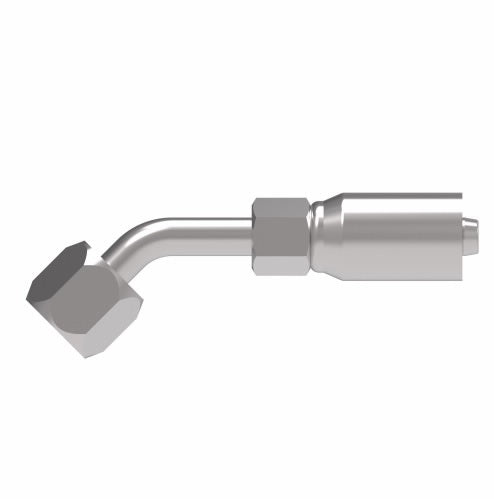

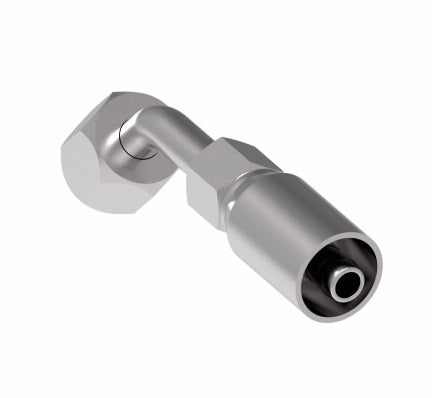

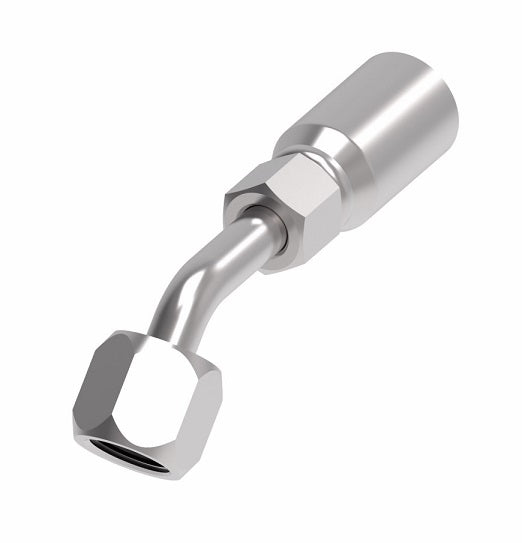

12E-692 Weatherhead by Danfoss | Everflex E Series | Female 37° JIC Swivel Tube 45° Elbow Crimp Fitting | -12 Female 37° JIC Swivel x -12 Hose Barb | Steel

12E-692 Weatherhead by Danfoss | Everflex E Series | Female 37° JIC Swivel Tube 45° Elbow Crimp Fitting | -12 Female 37° JIC Swivel x -12 Hose Barb | Steel

Name: 12E-692 Weatherhead by Danfoss | Everflex E Series | Female 37° JIC Swivel Tube 45° Elbow Crimp Fitting | -12 Female 37° JIC Swivel x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 12E-692 Danfoss
Price: 34.44 USD
Availability: InStock

$34.44 - $34.44

$34.44

$34.44 - $34.44

$34.44

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Female 37° JIC Swivel Tube - 45° Elbow

Quantity

Specifications for Variant SKU: 12E-692 Danfoss
Brand:	Weatherhead
Series:	Everflex E Series
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Female JIC, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	H009 Series \| H243 Series \| H275 Series \| H277 Series \| H285 Series

Applications:
General purpose low and medium pressure hydraulics. Use H277 where shock hazards exist.
Pressure:
Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
Low carbon steel Plating: Zinc; clear trivalent chromate
Compatible Hose:
H009, H243, H275, H277, H285
Warning:
For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only


Steel Part Number	Hose I.D.	Tube Size	Thread Size	A	B	Hose Cut-Off Factor	Hole Dia.	Hex E	Hex F
04E-684*	1/4"	1/4"	7/16-20	2.37"	0.33"	1.56"	0.15"	7/16"	9/16"
05E-686	5/16"	3/8"	9/16-18	2.65"	0.39"	1.69"	0.22"	9/16"	11/16"
06E-686	3/8"	3/8"	9/16-18	2.74"	0.39"	1.75"	0.24"	5/8"	11/16"
08E-688*	1/2"	1/2"	3/4-16	2.88"	0.56"	1.78"	0.33"	3/4"	7/8"
08E-690*	1/2"	5/8"	7/8-14	3.28"	0.63"	2.25"	0.39"	3/4"	1"
12E-692	3/4"	3/4"	1-1/16-12	3.72"	0.78"	2.38"	0.58"	1"	1-1/4"

* Swivel nuts are universal - both SAE 37° and 45° connections.

Note: Drawings may differ from actual parts.
