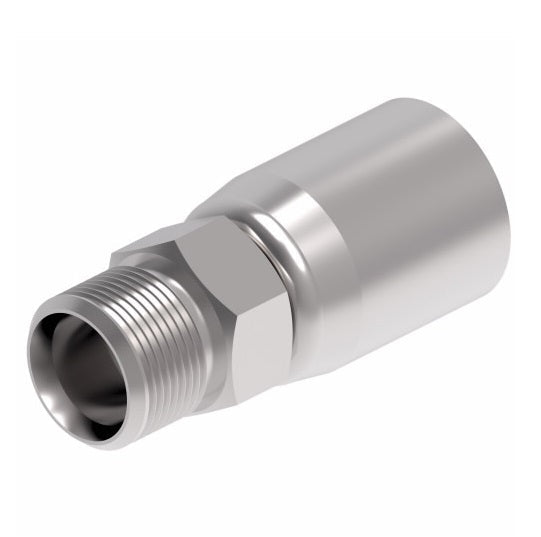

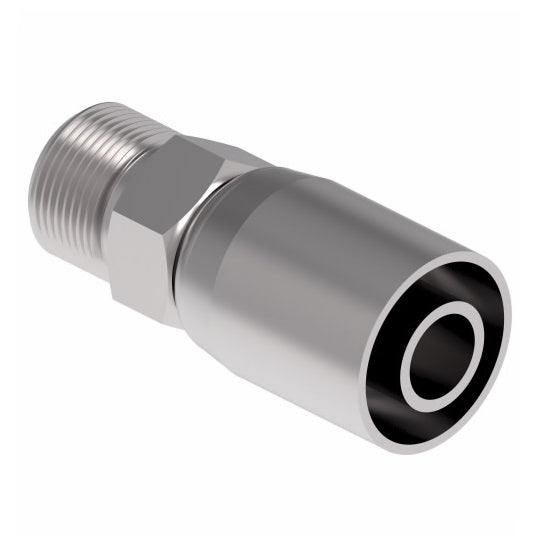

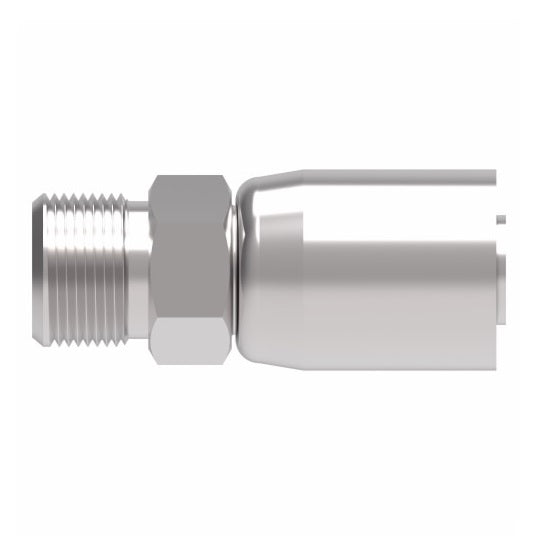

12E-Y62 Weatherhead by Danfoss | Everflex E Series | Air Brake Connection (Tube) Crimp Fitting | -12 Male NPTF x -12 Hose Barb | Steel
12E-Y62 Weatherhead by Danfoss | Everflex E Series | Air Brake Connection (Tube) Crimp Fitting | -12 Male NPTF x -12 Hose Barb | Steel
12E-Y62 Weatherhead by Danfoss | Everflex E Series | Air Brake Connection (Tube) Crimp Fitting | -12 Male NPTF x -12 Hose Barb | Steel
12E-Y62 Weatherhead by Danfoss | Everflex E Series | Air Brake Connection (Tube) Crimp Fitting | -12 Male NPTF x -12 Hose Barb | Steel

12E-Y62 Weatherhead by Danfoss | Everflex E Series | Air Brake Connection (Tube) Crimp Fitting | -12 Male NPTF x -12 Hose Barb | Steel

$29.20 - $29.20
$29.20
$29.20 - $29.20
$29.20

Weatherhead by Danfoss
Everflex 'E' Series Crimp Fitting - Air Brake Connection (Tube) - Straight
Specifications for Variant SKU: 12E-Y62 Danfoss
Brand: Weatherhead
Series: Everflex E Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPTF, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: H243 Series
Applications:
  • General purpose low and medium pressure hydraulics.
Pressure:
  • Determined by maximum operating pressure for hose size and hose end configuration whichever is lesser.
Material:
  • Low carbon steel
  • Plating: Zinc; clear trivalent chromate
Compatible Hose:
  • For use with H243 PTFE hose Only.
Warning:
  • For PTFE hose applications, 'E' series fittings must be used with H243 and H277 0.030" thin wall hose only
Steel
Part Number		 Hose I.D. Tube Size Thread Size A Hose Cut-Off
Factor		 Hole Dia. Hex E Sleeve
Part Number		 Nut
Part Number
- 1/2" 1/2" 11/16-20 2.12" 1.06" 0.38" 3/4" 1360x8 1361x8
08E-Y60 1/2" 5/8" 13/16-18 2.18" 1.13" 0.38" 7/8" 1360x10 1361x10
12E-Y62 3/4" 3/4" 1-18 2.38" 1.19" 0.61" 1" 1360x12 1361x12

Note: Drawings may differ from actual parts.
