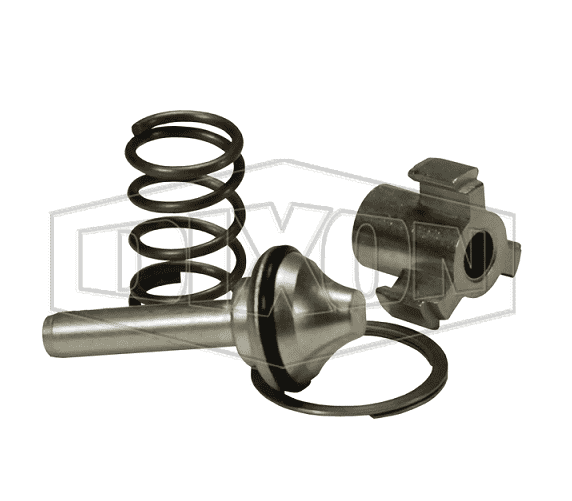

12H-SRKIT Dixon Valve H-Series ISO-B Hydraulic Quick Disconnect Repair Kit - For: 303 Stainless Steel Couplers - 1-1/2" Body Size - Nitrile

12H-SRKIT Dixon Valve H-Series ISO-B Hydraulic Quick Disconnect Repair Kit - For: 303 Stainless Steel Couplers - 1-1/2" Body Size - Nitrile

Save $38.45 Save $38.45
$96.13
$96.13 - $96.13
$96.13
$57.68
$57.68 - $57.68
$57.68



Dixon Quick Disconnect Couplings - H-Series Hydraulic Couplings - H-Series ISO-B Repair Kits
Specifications for Variant SKU: 12H-SRKIT Dixon
Compatibility & Interchange Data:
  • Interchangeable to ISO7241 Series 'B'
  • Parker 60 Series
  • Snap-Tite 72 Series
  • Hansen HK Series
  • Faster Series 'HNV'
  • Aeroquip/Eaton FD45
  • Stucchi Series IRB/IRBO/IRBX
Applications:
Safety Notes:
  • WARNING: Brass products contain a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
Part Number Body Size Coupler Type Seal Material Repair Kit Contents (for one coupler or nipple)
2H-RKIT 1/4" Steel Nitrile Steel valve assembly and retaining ring
2H-BRKIT 1/4" Brass Nitrile Brass valve assembly and retaining ring
2H-SRKIT 1/4" 303 Stainless Nitrile 303 SS valve assembly and retaining ring
2H-SSRKIT 1/4" 316 Stainless Nitrile 316 SS valve assembly and retaining ring
3H-RKIT 3/8" Steel Nitrile Steel valve assembly and retaining ring
3H-BRKIT 3/8" Brass Nitrile Brass valve assembly and retaining ring
3H-SRKIT 3/8" 303 Stainless Nitrile 303 SS valve assembly and retaining ring
3H-SSRKIT 3/8" 316 Stainless Nitrile 316 SS valve assembly and retaining ring
4H-RKIT 1/2" Steel Nitrile Steel valve assembly and retaining ring
4H-BRKIT 1/2" Brass Nitrile Brass valve assembly and retaining ring
4H-SRKIT 1/2" 303 Stainless Nitrile 303 SS valve assembly and retaining ring
4H-SSRKIT 1/2" 316 Stainless Nitrile 316 SS valve assembly and retaining ring
6H-RKIT 3/4" Steel Nitrile Steel valve assembly and retaining ring
6H-BRKIT 3/4" Brass Nitrile Brass valve assembly and retaining ring
6H-SRKIT 3/4" 303 Stainless Nitrile 303 SS valve assembly and retaining ring
6H-SSRKIT 3/4" 316 Stainless Nitrile 316 SS valve assembly and retaining ring
8H-RKIT 1" Steel Nitrile Steel valve assembly and retaining ring
8H-BRKIT 1" Brass Nitrile Brass valve assembly and retaining ring
8H-SRKIT 1" 303 Stainless Nitrile 303 SS valve assembly and retaining ring
8H-SSRKIT 1" 316 Stainless Nitrile 316 SS valve assembly and retaining ring
10H-RKIT 1-1/4" Steel Nitrile Steel valve assembly and adapter O-ring
10H-BRKIT 1-1/4" Brass Nitrile Brass valve assembly and adapter O-ring
10H-SRKIT 1-1/4" 303 Stainless Nitrile 303 SS valve assembly and adapter O-ring
10H-SSRKIT 1-1/4" 316 Stainless Nitrile 316 SS valve assembly and adapter O-ring
12H-RKIT 1-1/2" Steel Nitrile Steel valve assembly and adapter O-ring
12H-BRKIT 1-1/2" Brass Nitrile Brass valve assembly and adapter O-ring
12H-SRKIT 1-1/2" 303 Stainless Nitrile 303 SS valve assembly and adapter O-ring
12H-SSRKIT 1-1/2" 316 Stainless Nitrile 316 SS valve assembly and adapter O-ring
