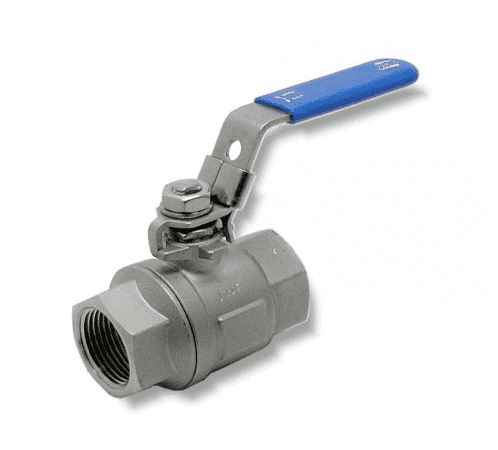

130M41 by RuB Inc. | Full Port Ball Valve | 3" Female NPT x 3" Female NPT | with Locking Blue Handle | Stainless Steel | Pack of 2

130M41 by RuB Inc. | Full Port Ball Valve | 3" Female NPT x 3" Female NPT | with Locking Blue Handle | Stainless Steel | Pack of 2

Save $485.48 Save $485.48
$1,699.19
$1,699.19 - $1,699.19
$1,699.19
$1,213.71
$1,213.71 - $1,213.71
$1,213.71

RuB Inc. - Stainless Steel Ball Valves - S.130 Series - Female NPT x Female NPT - Full Port with Locking Blue Handle

Package Quantity: 2 Units

Specifications for Variant SKU: 130M41 RuB Inc | 2 |
Shape (Orientation): Straight
Ends Configuration: 3in Female NPT, 3in Female NPT, Some Ends Match
Material(s): Stainless Steel
Seal Material(s): PTFE
Quality:
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Test standard API 598
  • NACE compliance MR-01-75
  • Handle stops on body to avoid stresses at stem
Body:
  • CF8M stainless steel body and cap
Stem:
  • Blowout-proof stainless steel stem
Sealing:
  • Glass filled PTFE seats
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Flow:
  • 100% full port for maximum flow
Handle:
  • Plastic coated stainless steel lockable handle. Handle coating offers both thermal and electrical protection
  • WARNING: do not exceed reasonable temperature and/or electrical load
  • Handle removable with valve in service
Working Pressure & Temperature:
  • 1000 PSI non-shock cold working pressure
  • 150 PSI WSP steam rating
  • 2x 10-2 torr vacuum rating
  • *150 psig non-shock working steam pressure. Not suitable for throttling steam.
  • -50°F/ +450°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in compliance with:
  • GOST-R (Russia)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D d L H D1 W1 h
130B41 1/4" 1/4" 0.433" 2.276" 2.252" 4.055" N/A N/A
130C41 3/8" 3/8" 0.492" 2.276" 2.252" 4.055" N/A N/A
130D41 1/2" 1/2" 0.591" 2.429" 2.327" 4.055" N/A N/A
130E41 3/4" 3/4" 0.787" 2.76" 2.463" 4.055" N/A N/A
130F41 1" 1" 0.984" 3.201" 2.783" 5" N/A N/A
130G41 1-1/4" 1-1/4" 1.26" 3.78" 3" 5" N/A N/A
130H41 1-1/2" 1-1/2" 1.496" 4.429" 3.508" 6.024" N/A N/A
130I41 2" 2" 1.969" 4.961" 3.864" 7.598" N/A N/A
130L41 2-1/2" 2-1/2" 2.559" 6.634" 4.354" 7.598" 2.756 M8x1.25
130M41 3" 3" 3.15" 7.535" 4.882" 10.985" 4.016 M10x1.5
RuB Inc

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
