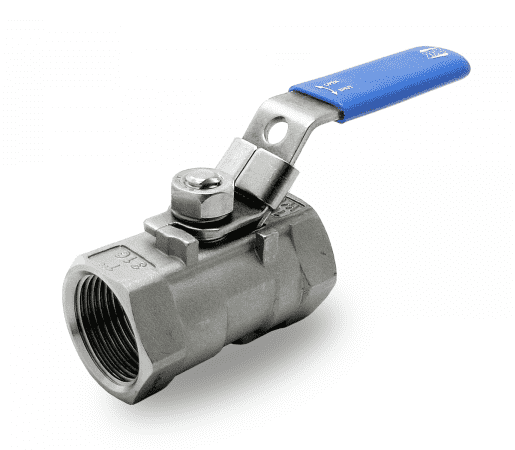

131C41 by RuB Inc. | Reduced Port Ball Valve | 3/8" Female NPT x 3/8" Female NPT | with Locking Blue Handle | Stainless Steel | Pack of 14

131C41 by RuB Inc. | Reduced Port Ball Valve | 3/8" Female NPT x 3/8" Female NPT | with Locking Blue Handle | Stainless Steel | Pack of 14

Save $105.06 Save $105.06
$367.70
$367.70 - $367.70
$367.70
$262.64
$262.64 - $262.64
$262.64

RuB Inc. - Stainless Steel Ball Valves - S.131 Series - Female NPT x Female NPT - Reduced Port with locking Blue Handle

Package Quantity: 14 Units

Specifications for Variant SKU: 131C41 RuB Inc | 14 |
Shape (Orientation): Straight
Ends Configuration: 3/8in Female NPT, 3/8in Female NPT, Some Ends Match
Material(s): Stainless Steel
Seal Material(s): PTFE
Quality:
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Test standard API 598
  • NACE compliance MR-01-75
  • Handle stops on body to avoid stresses at stem
Body:
  • CF8M stainless steel body
Stem:
  • Blowout-proof stainless steel stem
Sealing:
  • PTFE seats
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Handle:
  • Plastic coated stainless steel lockable handle. Handle coating offers both thermal and electrical protection
  • WARNING: do not exceed reasonable temperature and/or electrical load
Working Pressure & Temperature:
  • 1000 PSI non-shock cold working pressure
  • 150 PSI WSP steam rating
  • 2x 10-2 torr vacuum rating
  • *150 psig non-shock working steam pressure. Not suitable for throttling steam.
  • -50°F/ +450°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in compliance with:
  • GOST-R (Russia)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D d L H B Ch
131B41 1/4" 1/4" 0.197" 1.535" 1.370" 2.756" 0.669
131C41 3/8" 3/8" 0.276" 1.732" 1.390" 3.110" 0.827
131D41 1/2" 1/2" 0.362" 2.205" 1.807" 3.661" 0.984
131E41 3/4" 3/4" 0.492" 2.323" 1.846" 3.622" 1.260
131F41 1" 1" 0.591" 2.795" 1.862" 4.409" 1.496
131G41 1-1/4" 1-1/4" 0.787" 3.110" 2.189" 4.409" 1.929
131H41 1-1/2" 1-1/2" 0.965" 3.268" 2.280" 5.315" 2.087
131I41 2" 2" 1.260" 3.937" 2.547" 5.315" 2.559
RuB Inc

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
