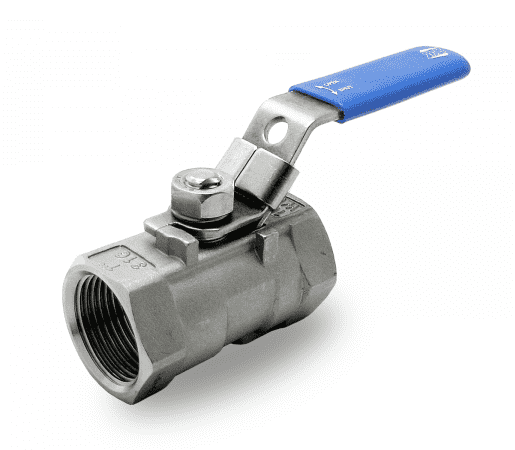

131D41 by RuB Inc. | Reduced Port Ball Valve | 1/2" Female NPT x 1/2" Female NPT | with Locking Blue Handle | Stainless Steel | Pack of 10

Save $86.77

$303.70

$303.70 - $303.70

$303.70

$216.93

$216.93 - $216.93

$216.93

RuB Inc. - Stainless Steel Ball Valves - S.131 Series - Female NPT x Female NPT - Reduced Port with locking Blue Handle

Package Quantity: 10 Units

Specifications for Variant SKU: 131D41 RuB Inc \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s):	Stainless Steel
Seal Material(s):	PTFE

Quality:
Dual sealing system allows valve to be operated in either direction making installation easier Handle clearly shows ball position Silicone-free lubricant on all seals Test standard API 598 NACE compliance MR-01-75 Handle stops on body to avoid stresses at stem
Body:
CF8M stainless steel body
Stem:
Blowout-proof stainless steel stem
Sealing:
PTFE seats
Threads:
NPT taper ANSI B.1.20.1 female by female threads
Handle:
Plastic coated stainless steel lockable handle. Handle coating offers both thermal and electrical protection WARNING: do not exceed reasonable temperature and/or electrical load
Working Pressure & Temperature:
1000 PSI non-shock cold working pressure 150 PSI WSP steam rating 2x 10^-2 torr vacuum rating *150 psig non-shock working steam pressure. Not suitable for throttling steam. -50°F/ +450°F WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in compliance with:
GOST-R (Russia) NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	d	L	H	B	Ch
131B41	1/4"	1/4"	0.197"	1.535"	1.370"	2.756"	0.669
131C41	3/8"	3/8"	0.276"	1.732"	1.390"	3.110"	0.827
131D41	1/2"	1/2"	0.362"	2.205"	1.807"	3.661"	0.984
131E41	3/4"	3/4"	0.492"	2.323"	1.846"	3.622"	1.260
131F41	1"	1"	0.591"	2.795"	1.862"	4.409"	1.496
131G41	1-1/4"	1-1/4"	0.787"	3.110"	2.189"	4.409"	1.929
131H41	1-1/2"	1-1/2"	0.965"	3.268"	2.280"	5.315"	2.087
131I41	2"	2"	1.260"	3.937"	2.547"	5.315"	2.559

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
