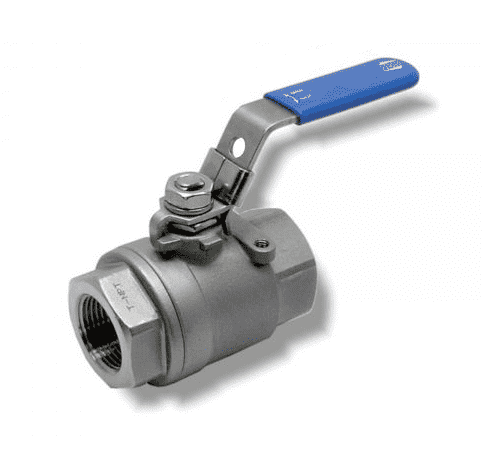

132G41 by RuB Inc. | Full Port Ball Valve | 1-1/4" Female NPT x 1-1/4" Female NPT | with Locking Blue Handle | Stainless Steel | Pack of 4

Save $184.64

$646.24

$646.24 - $646.24

$646.24

$461.60

$461.60 - $461.60

$461.60

RuB Inc. - Stainless Steel Ball Valves - S.132 Series - Female NPT x Female NPT - Full Port Stainless Steel with Locking Blue Handle

Package Quantity: 4 Units

Specifications for Variant SKU: 132G41 RuB Inc \| 4 \|
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Female NPT, 1-1/4in Female NPT, Some Ends Match
Material(s):	Stainless Steel
Seal Material(s):	PTFE

Quality:
Dual sealing system allows valve to be operated in either direction making installation easier Handle clearly shows ball position Silicone-free lubricant on all seals Test standard API 598 NACE compliance MR-01-75 Handle stops on body to avoid stresses at stem 316 stainless steel ball valve, 2 piece construction
Body:
CF8M stainless steel body and cap Design specification ANSI B16.34 CLASS 900
Stem:
Blowout-proof stainless steel stem
Sealing:
Molecularly enhanced PTFE seats () Molecular enhanced-PTFE (ME-PTFE) is virgin PTFE (no glass or carbon fillers are used) which, due to its improved molecular structure, surepass the mechanical properties of conventional filled PTFE materials. Used in fluid sealing applications it provides superior performance in terms of high temperature strength, reduced creep distortion, and resistance to chemical attack.
Threads:
NPT taper ANSI B.1.20.1 female by female threads
Flow:
100% full port for maximum flow
Handle:
Plastic coated stainless steel lockable handle. Handle coating offers both thermal and electrical protection WARNING: do not exceed reasonable temperature and/or electrical load Handle removable with valve in service
Working Pressure & Temperature:
2000 PSI from 1/4? up to 1?, 1500 PSI from 1.1/4? up to 2? non-shock cold working pressure 150 PSI WSP steam rating 2x 10^-2 torr vacuum rating **150 psig non-shock working steam pressure. Not suitable for throttling steam. -50°F/ +475°F WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in compliance with:
GOST-R (Russia) NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	d	L	H	D1	W1	W2	h	WOG
132B41	1/4"	1/4"	0.433"	2.343"	2.244"	4.055"	0.5"	1.122"	M5 x 0.8	2000
132C41	3/8"	3/8"	0.492"	2.343"	2.244"	4.055"	0.5"	1.122"	M5 x 0.8	2000
132D41	1/2"	1/2"	0.591"	2.539"	2.268"	4.055"	0.5"	1.122"	M5 x 0.8	2000
132E41	3/4"	3/4"	0.787"	3.031"	2.697"	5"	0.882	1.378	M6 x 1	2000
132F41	1"	1"	0.984"	3.563"	2.862"	5"	0.882	1.378	M6 x 1	2000
132G41	1-1/4"	1-1/4"	1.26"	3.917"	3.453"	6.124"	1"	1.5"	M6 x 1	1500
132H41	1-1/2"	1-1/2"	1.575"	4.646"	3.661"	6.124"	1"	1.5"	M6 x 1	1500
132I41	2"	2"	2"	5.374"	4.106"	7.598"	1"	1.5"	M6 x 1	1500

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
