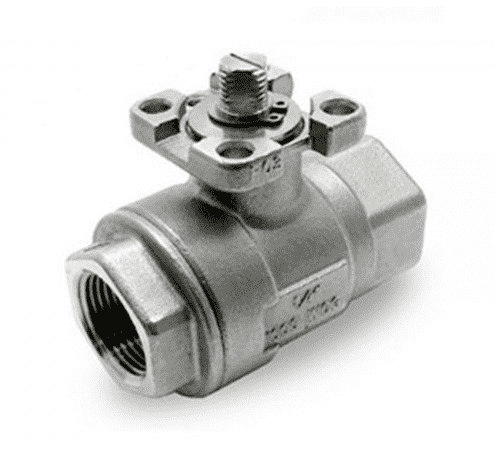

134H41 by RuB Inc. | Full Port Actuatable Ball Valve | 1-1/2" Female NPT x 1-1/2" Female NPT | Stainless Steel | Pack of 4

134H41 by RuB Inc. | Full Port Actuatable Ball Valve | 1-1/2" Female NPT x 1-1/2" Female NPT | Stainless Steel | Pack of 4

Save $326.72 Save $326.72
$1,143.52
$1,143.52 - $1,143.52
$1,143.52
$816.80
$816.80 - $816.80
$816.80

RuB Inc. - Stainless Steel Ball Valves - S.134 Series - Female NPT x Female NPT - Full Port Stainless Steel Actuatable

Package Quantity: 4 Units

Specifications for Variant SKU: 134H41 RuB Inc | 4 |
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female NPT, 1-1/2in Female NPT, Some Ends Match
Material(s): Stainless Steel
Seal Material(s): PTFE
Quality:
  • Dual sealing system allows valve to be operated in either direction making installation easier
  • Silicone-free lubricant on all seals
  • NACE compliance MR-01-75
Body:
  • Designed and tested for ANSI B16.34
  • CF8M stainless steel housing
Stem:
  • Blowout-proof stem
Sealing:
  • Reinforced PTFE seats
Threads:
  • NPT taper ANSI B.1.20.1 female by female threads
Flow:
  • 100% full port for maximum flow
Handle:
  • AISI 316 stainless trim
  • Convertible for manual or actuated operation
  • ISO 5211 actuator mounting pad allows direct mounting of RuB electric and pneumatic actuators, with no bracket or coupling required.
Working Pressure & Temperature:
  • 1000 PSI cold working pressure
  • 150 PSI WSP steam rating
  • 2x 10-2 torr vacuum rating
  • **150 psig non-shock working steam pressure. Not suitable for throttling steam.
  • -50°F/ +450°F
  • WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in compliance with:
  • GOST-R (Russia)
  • NOTE: approvals apply to specific configurations/sizes only.
Part Number Size Dimensions (Inches)
D DN H1 A B S F
(ISO 5211)
134D41 1/2" 1/2" 0.56" 1.40" 2.60" 0.26" 0.35" F03
132E41 3/4" 3/4" 0.81" 1.56" 2.99" 0.28" 0.35" F03
134F41 1" 1" 1" 1.84" 3.54" 0.319" 0.43" F04/F05
134G41 1-1/4" 1-1/4" 1.25" 2" 3.94" 0.319" 0.43" F04/F05
134H41 1-1/2" 1-1/2" 1.5" 2.3" 4.41" 0.319" 0.43" F04/F05
134I41 2" 2" 1.97" 2.8" 5" 0.382" 0.55" F05
RuB Inc

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
