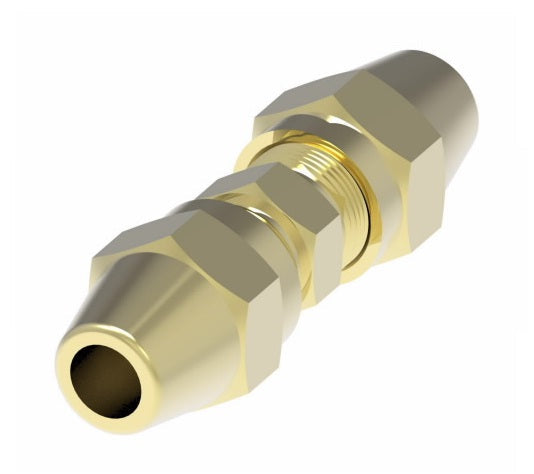

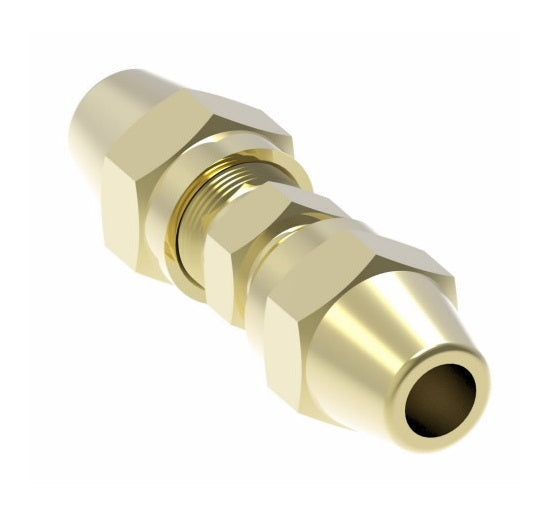

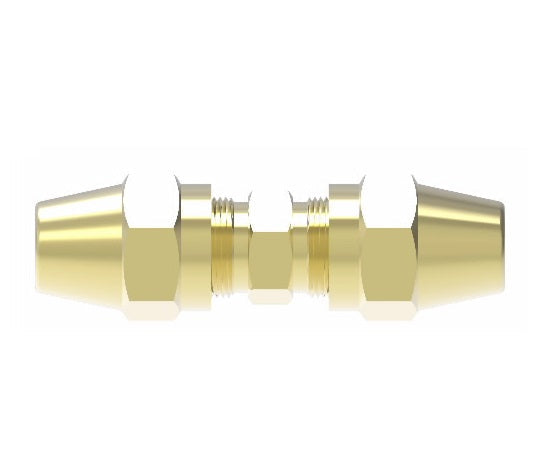

1362X6 by Danfoss | Air Brake Adapter for Copper Tubing | Union | 3/8" Tube OD x 3/8" Tube OD | Brass

1362X6 by Danfoss | Air Brake Adapter for Copper Tubing | Union | 3/8" Tube OD x 3/8" Tube OD | Brass

Name: 1362X6 by Danfoss | Air Brake Adapter for Copper Tubing | Union | 3/8" Tube OD x 3/8" Tube OD | Brass
Brand: Danfoss/Eaton
SKU: 1362X6 Danfoss
Price: 9.36 USD
Availability: InStock

$9.36 - $9.36

$9.36

$9.36 - $9.36

$9.36

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Union

Quantity

Specifications for Variant SKU: 1362X6 Danfoss
Material(s):	Brass

Applications:
Air brake systems.
Advantages:
Easy to assemble (no flaring). May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut. Fair Vibration Resistance.
Used With:
Copper tubing in air brake systems.
Material:
CA360 Brass.
Pressure:
Maximum operating pressure of 150 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
Ref. SAE No. 120101BA Meets specifications and standards of SAE and DOT.


Brass Part Number	Brass Body Only Part Number	Tube O.D.	Hex C	D	L
1362X4	B1362X4	1/4"	7/16"	0.188"	0.85"
1362X6	B1362X6	3/8"	9/16"	0.312"	1.10"
1362X8	B1362X8	1/2"	11/16"	0.406"	1.31"
1362X10	B1362X10	5/8"	13/16"	0.531"	1.43"
1362X12	B1362X12	3/4"	1"	0.656"	1.60"
