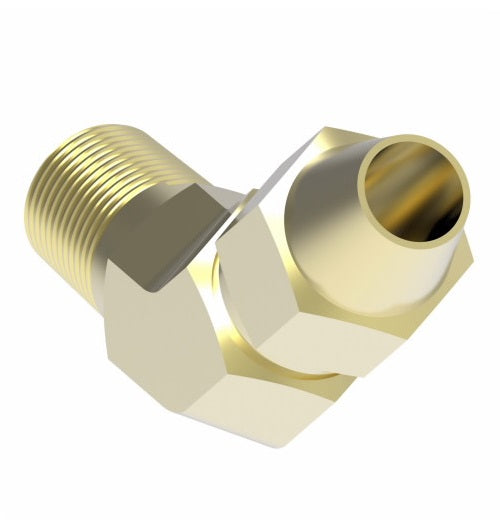

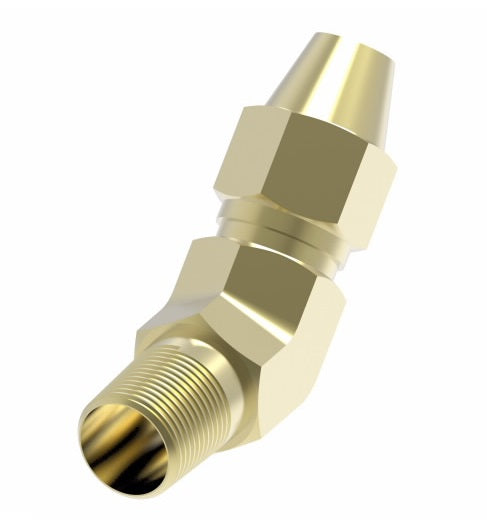

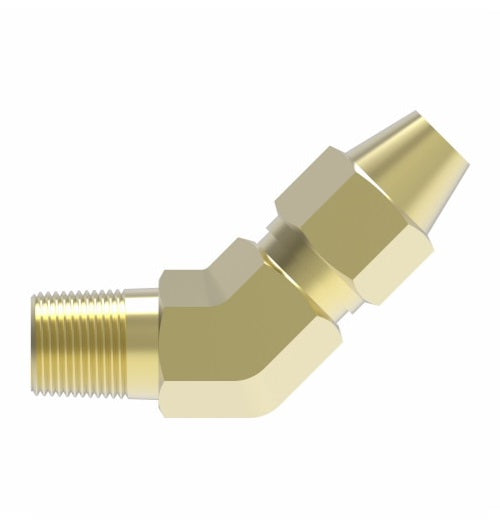

1380X8 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector 45° Elbow | 1/2" Tube OD x 3/8" Male Pipe | Brass

1380X8 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector 45° Elbow | 1/2" Tube OD x 3/8" Male Pipe | Brass

Name: 1380X8 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector 45° Elbow | 1/2" Tube OD x 3/8" Male Pipe | Brass
Brand: Danfoss/Eaton
SKU: 1380X8 Danfoss
Price: 15.4 USD
Availability: InStock

$15.40 - $15.40

$15.40

$15.40 - $15.40

$15.40

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Male Connector

Specifications for Variant SKU: 1380X8 Danfoss
Shape (Orientation):	45 Degree
Material(s):	Brass

Applications:
Air brake systems.
Advantages:
Easy to assemble (no flaring). May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut. Fair Vibration Resistance.
Used With:
Copper tubing in air brake systems.
Material:
CA360 Brass.
Pressure:
Maximum operating pressure of 150 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
Ref. SAE No. 120302BA Meets specifications and standards of SAE and DOT.


Brass Part Number	Brass Body Only Part Number	Tube O.D.	Male Pipe Thread	D	D1	M	N
1380X6	B1380X6	3/8"	1/4"	0.312"	0.312"	0.72"	0.86"
1380X6X6	-	3/8"	3/8"	0.312"	0.406"	0.76"	0.95"
1380X8	-	1/2"	3/8"	0.409"	0.406"	0.85"	0.95"
1380X10	B1380X10	5/8"	1/2"	0.534"	0.531"	0.95"	1.17"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
