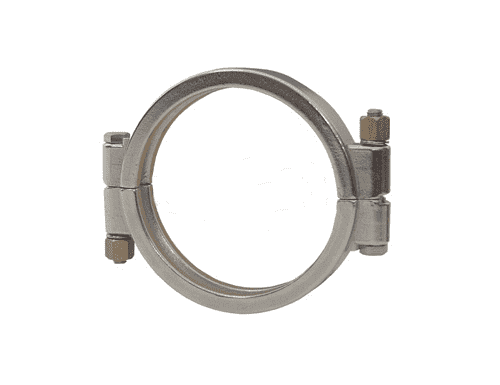

13MHPV150 Dixon Valve 304 Stainless Steel Sanitary 1-1/2" Pipe Size Bolted Clamp

13MHPV150 Dixon Valve 304 Stainless Steel Sanitary 1-1/2" Pipe Size Bolted Clamp

Save $1.96 Save $1.96
$19.63
$19.63 - $19.63
$19.63
$17.67
$17.67 - $17.67
$17.67

Dixon Sanitary Fittings Sanitary Pipe Size Clamps - Bolted Clamp - 304 Stainless Steel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 13MHPV150 Dixon
Material(s): 304 Stainless Steel
Maximum Clamp I.D.: 1.5
Features:
  • Bronze nuts tightened to 20 ft. lb. of torque
  • Please note: In sizes 1/2" through 12" pipe is known by its nominal inside diameter, which differs from its actual inside diameter. To distinguish pipe sizes from actual measured diameters as used for tube, the terms iron pipe size (IPS) or nominal pipe size (NPS) are usually used. For all pipe sizes, the outside diameter (OD) remains constant; the variations in wall thickness affect the inside diameter (ID).
  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
  • Pipe size and Tube OD size materials are not interchangeable.
Part Number Pipe Size Service Pressure Rating @ 70 deg. F * Dimensions


Weight (Lbs.)
A B C D
13MHPV100 1" 750 PSI 2.1" 4.0" 2.7" 1.0" 1.3000
13MHPV150 1-1/2" 500 PSI 2.6" 4.5" 3.3" 1.0" 1.4000
13MHPV200 2" 500 PSI 3.2" 4.9" 3.7" 1.0" 1.5200
13MHPV250 2-1/2" 500 PSI 3.7" 5.5" 4.4" 1.0" 2.2000
13MHPV300 3" - - - - - -
13MHPV400 4" 400 PSI 5.3" 7.0" 5.9" 1.0" 2.3600
13MHPV600 6" - - - - - 2.0000
13MHPV800 8" - - - - - -

* Nut tightened to 20 ft. lbs. of torque

All ratings shown are dependent upon related components within the system and proper installation.
