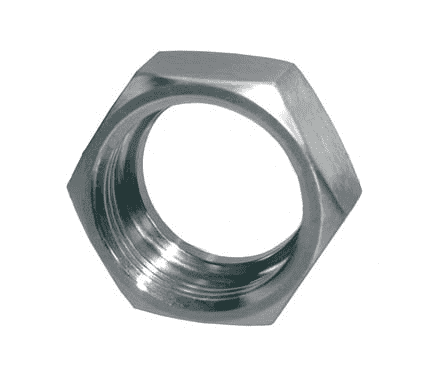

13H-G300 Dixon 304 Stainless Steel Sanitary Bevel Seat Union Hex Nut - 3" Tube OD

13H-G300 Dixon Valve 304 Stainless Steel Sanitary Bevel Seat Union Hex Nut - 3" Tube OD

Save $30.75 Save $30.75
$76.87
$76.87 - $76.87
$76.87
$46.12
$46.12 - $46.12
$46.12

Dixon Sanitary Bevel Seat Hex Nuts - Union Hex Nuts - 304 Stainless Steel (CF8)
Specifications for Variant SKU: 13H-G300 Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Features:
  • 400 PSI maximum.
Part Number Tube OD Dimensions Weight (Lbs.)
A B
13H-G100 1" .906" 1.812" 0.3000
13H-G150 1-1/2" .968" 2.406" 0.5330
13H-G200 2" 1.062" 3.000" 0.8250
13H-G250 2-1/2" 1.187" 3.594" 1.2900
13H-G300 3" 1.281" 4.188" 1.8100
13H-G400 4" 1.500" 5.438" 3.4000
