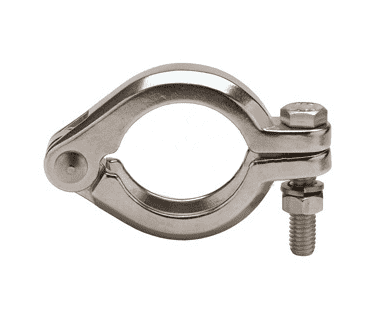

13ILB400 Dixon 304 Stainless Steel Sanitary Bolted I-Line Clamp - 4" Tube OD

13ILB400 Dixon Valve 304 Stainless Steel Sanitary Bolted I-Line Clamp - 4" Tube OD

$143.54 - $143.54
$143.54
$144.96
$144.96 - $144.96
$144.96

Dixon Sanitary I-Line Clamps - Bolted Clamps - 304 Stainless Steel

Specifications for Variant SKU: 13ILB400 Dixon
Material(s): 304 Stainless Steel
Maximum Clamp I.D.: 4
Note:
  • Wing nut tightened to 20 in. lbs. of torque
Safety Notes:
  • Tests are done hydrostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
Part Number Tube OD Service Pressure Rating Dimensions
Weight
(Lbs.)
@ 70 deg. F * @ 205 deg. F * A
13ILB100-150 1" - 1-1/2" 1220 PSI 1100 PSI 2.122 0.7000
13ILB200 2" 900 PSI 830 PSI 2.654 1.2000
13ILB250 2-1/2" 720 PSI 660 PSI 3.185 2.3400
13ILB300 3" 600 PSI 550 PSI 3.717 2.2650
13ILB400 4" 570 PSI 525 PSI 4.820 3.7900
Part Number Tube OD Service Pressure Rating Dimensions
Weight
(Lbs.)
@ 70 deg. F * @ 205 deg. F * A
13ILB600 6" 300 PSI 200 PSI 7.689 5.5350
13ILB800 8" 250 PSI 150 PSI 9.689 3.7700

* Wing nut tightened to 20 in. lbs. of torque.
