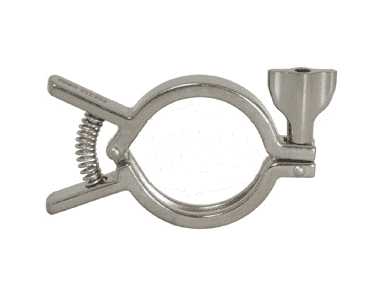

13MHHM-Q200 Dixon 304 Stainless Steel Sanitary Single Pin Squeeze Clamp - 2" Tube OD

13MHHM-Q200 Dixon Valve 304 Stainless Steel Sanitary Single Pin Squeeze Clamp - 2" Tube OD

Save $2.70 Save $2.70
$24.31
$24.31 - $24.31
$24.31
$21.61
$21.61 - $21.61
$21.61

Dixon Sanitary Clamps - Single Pin Squeeze Clamps - 304 Stainless Steel

Specifications for Variant SKU: 13MHHM-Q200 Dixon
Material(s): 304 Stainless Steel
Maximum Clamp I.D.: 2
Features:
  • Wingnut tightened to 25 in. lb. of torque.
Safety Notes:
  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydrostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
Part Number Tube OD Service Pressure Rating @ 70 deg. F Service Pressure Rating @ 250 deg. F Dimension A Weight (Lbs.)
13MHHM-Q75 1/2" - 3/4" 1500 1200 1.062 0.6300
13MHHM-Q100150 1" - 1-1/2" 500 300 2.122 0.8900
13MHHM-Q200 2" 450 250 2.654 1.0055
13MHHM-Q250 2-1/2" 400 200 3.185 1.1500
13MHHM-Q300 3" 350 175 3.717 1.2000
13MHHM-Q400 4" 300 150 4.820 1.4200
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
