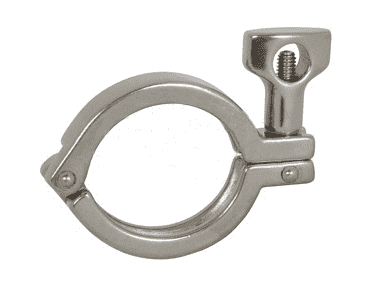

13MHHM200 Dixon 304 Stainless Steel Single Pin Heavy Duty Sanitary Clamp with Cross Hole Wing Nut - 2" Tube OD

13MHHM200 Dixon Valve 304 Stainless Steel Single Pin Heavy Duty Sanitary Clamp with Cross Hole Wing Nut - 2" Tube OD

Save $1.73 Save $1.73
$15.58
$15.58 - $15.58
$15.58
$13.85
$13.85 - $13.85
$13.85

Dixon Sanitary Clamps - Single Pin Heavy Duty Clamps with Cross Hole Wing Nut - 304 Stainless Steel
Specifications for Variant SKU: 13MHHM200 Dixon
Material(s): 304 Stainless Steel
Maximum Clamp I.D.: 2
Features:
  • Wingnut tightened to 25 in. lb. of torque.
Safety Notes:
  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
Part Number Tube OD Service Pressure Rating @ 70 deg. F Service Pressure Rating @ 250 deg. F Dimension A Weight (Lbs.)
13MHHM50-75 1/2" - 3/4" 1500 1200 1.062 0.3110
13MHHM100-150 1" - 1-1/2" 500 300 2.122 0.6400
13MHHM200 2" 450 250 2.654 0.7600
13MHHM250 2-1/2" 400 200 3.185 0.8840
13MHHM300 3" 350 175 3.717 0.9800
13MHHM400 4" 300 150 4.820 1.3200
13MHHM500 5" 225 100 5.820 1.5200
13MHHM600 6" 150 75 6.695 2.3700
13MHHM800 8" 100 50 8.695 3.1700
