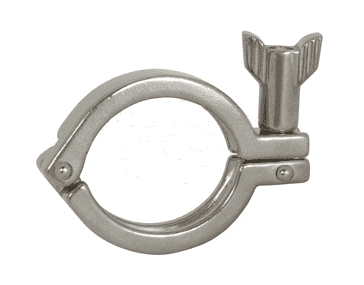

13MHHM50-75SN Dixon Valve 304 Stainless Steel Single Pin Heavy Duty Sanitary Clamp with Serrated Wing Nut - 1/2" - 3/4" Tube OD

  • $4.05
Features:
  • Wingnut tightened to 25 in. lb. of torque.
Safety Notes:
  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
Part Number Tube OD Service Pressure Rating @ 70 deg. F Service Pressure Rating @ 250 deg. F Dimension A Weight (Lbs.)
13MHHM50-75SN 1/2" - 3/4" 1500 1200 1.062 0.3500
13MHHM100-150SN 1" - 1-1/2" 500 300 2.122 0.6300
13MHHM200SN 2" 450 250 2.654 0.7400
13MHHM250SN 2-1/2" 400 200 3.185 0.8485
13MHHM300SN 3" 350 175 3.717 0.9500
13MHHM400SN 4" 300 150 4.820 1.2500
13MHHM500SN 5" 225 100 5.820 N/A
13MHHM600SN 6" 150 75 6.695 2.3600
13MHHM800SN 8" 100 50 8.695 3.0335
