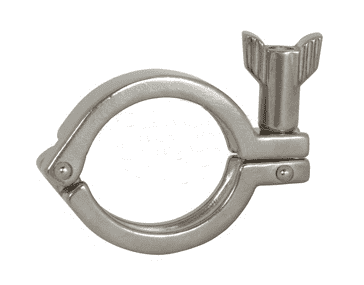

13MHHM600SN Dixon 304 Stainless Steel Single Pin Heavy Duty Sanitary Clamp with Serrated Wing Nut - 6" Tube OD

13MHHM600SN Dixon Valve 304 Stainless Steel Single Pin Heavy Duty Sanitary Clamp with Serrated Wing Nut - 6" Tube OD

Save $4.53 Save $4.53
$40.77
$40.77 - $40.77
$40.77
$36.24
$36.24 - $36.24
$36.24

Dixon Sanitary Fittings
Sanitary Clamps - Single Pin Heavy Duty Clamps with Serrated Wing Nut - 304 Stainless Steel
Specifications for Variant SKU: 13MHHM600SN Dixon
Material(s): 304 Stainless Steel
Maximum Clamp I.D.: 6
Features:
  • Wingnut tightened to 25 in. lb. of torque.
Safety Notes:
  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
Part Number Tube OD Service Pressure
Rating @ 70 deg. F		 Service Pressure
Rating @ 250 deg. F		 Dimension A
Weight
(Lbs.)
13MHHM50-75SN 1/2" - 3/4" 1500 PSI 1200 PSI 1.062 0.3500
13MHHM100-150SN 1" - 1-1/2" 500 PSI 300 PSI 2.122 0.6300
13MHHM200SN 2" 450 PSI 250 PSI 2.654 0.7400
13MHHM250SN 2-1/2" 400 PSI 200 PSI 3.185 0.8485
13MHHM300SN 3" 350 PSI 175 PSI 3.717 0.9500
13MHHM400SN 4" 300 PSI 150 PSI 4.820 1.2500
13MHHM500SN 5" 225 PSI 100 PSI 5.820 1.3900
13MHHM600SN 6" 150 PSI 75 PSI 6.695 2.3600
13MHHM800SN 8" 100 PSI 50 PSI 8.695 3.0335
