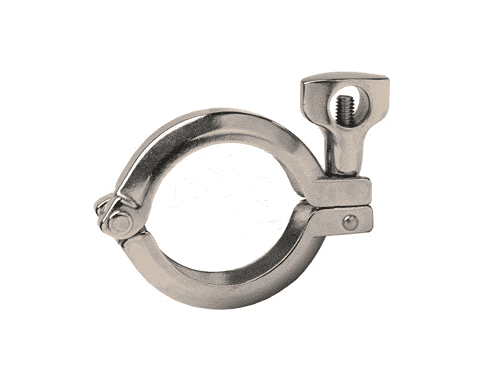

13MHHV600 Dixon 304 Stainless Steel Sanitary 6" Pipe Size Schedule 5S and 10S Single Pin Heavy Duty Clamp

13MHHV600 Dixon Valve 304 Stainless Steel Sanitary 6" Pipe Size Schedule 5S and 10S Single Pin Heavy Duty Clamp

Save $102.80 Save $102.80
$257.00
$257.00 - $257.00
$257.00
$154.20
$154.20 - $154.20
$154.20

Dixon Sanitary Pipe Size Clamps - Schedule 5S and 10S Single Pin Heavy Duty Clamps - 304 Stainless Steel

Specifications for Variant SKU: 13MHHV600 Dixon
Material(s): 304 Stainless Steel
Maximum Clamp I.D.: 6
Features:
  • Wing nut tightened to 25 in. lbs. torque
  • Please note: In sizes 1/2" through 12" pipe is known by its nominal inside diameter, which differs from its actual inside diameter. To distinguish pipe sizes from actual measured diameters as used for tube, the terms iron pipe size (IPS) or nominal pipe size (NPS) are usually used. For all pipe sizes, the outside diameter (OD) remains constant; the variations in wall thickness affect the inside diameter (ID).
  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydrostatically with no water hammer or shock loads.
Part Number Pipe Size Service Pressure Rating
@ 70 deg. F		 Dimension A
Weight
(Lbs.)
13MHHV100 1" 500 PSI 2.122" 0.6400
13MHHV150 1-1/2" 450 PSI 2.654" 0.7600
13MHHV200 2" 400 PSI 3.185" 0.8840
13MHHV250 2-1/2" 350 PSI 3.717" 0.9800
13MHHV300 3" 250 PSI 4.263" 1.1400
13MHHV400 4" 150 PSI 5.263" 1.3500
13MHHV600 6" 100 PSI 7.500" 3.2000

* Wing nut tightened to 25 ft. lbs. of torque

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
