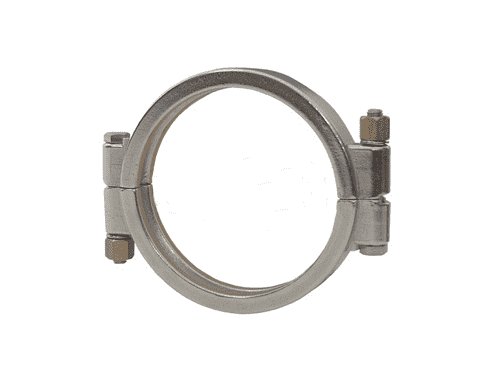

13MHPV400 Dixon 304 Stainless Steel Sanitary 4" Pipe Size Bolted Clamp

13MHPV400 Dixon Valve 304 Stainless Steel Sanitary 4" Pipe Size Bolted Clamp

Save $61.36 Save $61.36
$153.40
$153.40 - $153.40
$153.40
$92.04
$92.04 - $92.04
$92.04

Dixon Sanitary Fittings Sanitary Pipe Size Clamps - Bolted Clamp - 304 Stainless Steel
Specifications for Variant SKU: 13MHPV400 Dixon
Material(s): 304 Stainless Steel
Maximum Clamp I.D.: 4
Features:
  • Bronze nuts tightened to 20 ft. lb. of torque
  • Please note: In sizes 1/2" through 12" pipe is known by its nominal inside diameter, which differs from its actual inside diameter. To distinguish pipe sizes from actual measured diameters as used for tube, the terms iron pipe size (IPS) or nominal pipe size (NPS) are usually used. For all pipe sizes, the outside diameter (OD) remains constant; the variations in wall thickness affect the inside diameter (ID).
  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
  • Pipe size and Tube OD size materials are not interchangeable.
Part Number Pipe Size Service Pressure Rating @ 70 deg. F * Dimensions


Weight (Lbs.)
A B C D
13MHPV100 1" 750 PSI 2.1" 4.0" 2.7" 1.0" 1.3000
13MHPV150 1-1/2" 500 PSI 2.6" 4.5" 3.3" 1.0" 1.4000
13MHPV200 2" 500 PSI 3.2" 4.9" 3.7" 1.0" 1.5200
13MHPV250 2-1/2" 500 PSI 3.7" 5.5" 4.4" 1.0" 2.2000
13MHPV300 3" - - - - - -
13MHPV400 4" 400 PSI 5.3" 7.0" 5.9" 1.0" 2.3600
13MHPV600 6" - - - - - 2.0000
13MHPV800 8" - - - - - -

* Nut tightened to 20 ft. lbs. of torque

All ratings shown are dependent upon related components within the system and proper installation.
