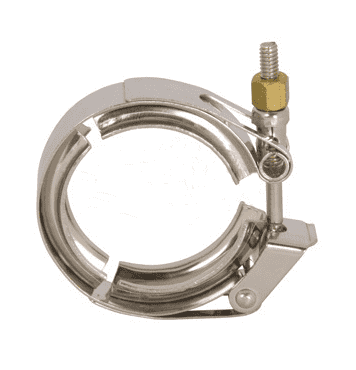

13MO1200 Dixon 304 Stainless Steel T-bolt Sanitary Clamp - 12" Tube OD

13MO1200 Dixon Valve 304 Stainless Steel T-bolt Sanitary Clamp - 12" Tube OD

Name: 13MO1200 Dixon Valve 304 Stainless Steel T-bolt Sanitary Clamp - 12" Tube OD
Brand: Dixon
SKU: 13MO1200 Dixon
Price: 101.48 USD
Availability: InStock

Save $12.69

$114.17

$114.17 - $114.17

$114.17

$101.48

$101.48 - $101.48

$101.48

Dixon Sanitary Clamps - T-bolt Clamps - 304 Stainless Steel

Quantity

Specifications for Variant SKU: 13MO1200 Dixon
Material(s):	304 Stainless Steel
Maximum Clamp I.D.:	12

Features:
1" - 3" nuts tightened to 20 in. lb., 4" nut tightened to 30 in. lb., 6" nut tightened to 40 in. lb. and 8" - 12" nuts tightened to 50 in. lb. of torque
Safety Notes:
Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydrostatically with no water hammer or shock loads. Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.

Part Number	Tube OD	Service Pressure Rating PSI @ 70 deg. F	Service Pressure Rating PSI @ 250 deg. F	Dimension A	Weight (Lbs.)
13MO100-150	1" - 1-1/2"	500	250	2.080	0.2900
13MO200	2"	350	200	2.610	0.2850
13MO250	2-1/2"	300	150	3.140	0.4150
13MO300	3"	200	100	3.670	0.4800
13MO400	4"	100	75	4.780	0.5700
13MO600	6"	75	50	6.690	1.6300
13MO800*	8"	50	40	8.690	2.3600
13MO1000*	10"	40	30	10.690	2.6700
13MO1200*	12"	30	25	12.690	3.1200

* 2 Bolt Configuration
