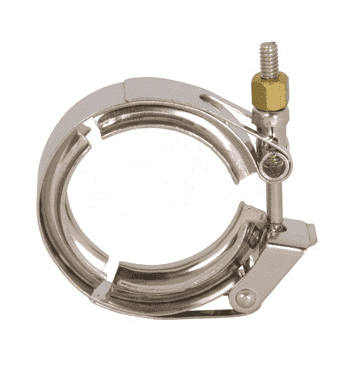

13MO300 Dixon Valve 304 Stainless Steel T-bolt Sanitary Clamp - 3" Tube OD

  • $14.11
Zoom image

13MO300 Dixon Valve 304 Stainless Steel T-bolt Sanitary Clamp - 3" Tube OD

  • $14.11

Dixon Sanitary Clamps - T-bolt Clamps - 304 Stainless Steel

Trustpilot

Features:
  • 1" - 3" nuts tightened to 20 in. lb., 4" nut tightened to 30 in. lb., 6" nut tightened to 40 in. lb. and 8" - 12" nuts tightened to 50 in. lb.of torque
Safety Notes:
  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
Part Number Tube OD Service Pressure Rating @ 70 deg. F Service Pressure Rating @ 250 deg. F Dimension A Weight (Lbs.)
13MO100-150 1" - 1-1/2" 500 250 2.080 0.2900
13MO200 2" 350 200 2.610 0.2850
13MO250 2-1/2" 300 150 3.140 0.4150
13MO300 3" 200 100 3.670 0.4800
13MO400 4" 100 75 4.780 0.5700
13MO600 6" 75 50 6.690 1.6300
13MO800* 8" 50 40 8.690 2.3600
13MO1000* 10" 40 30 10.690 2.6700
13MO1200* 12" 30 25 12.690 3.1200
* 2 Bolt Configuration
