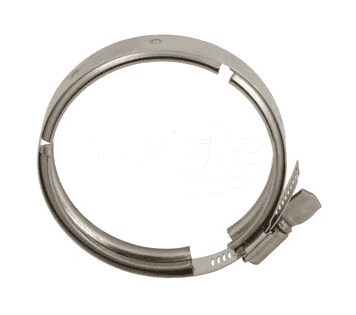

13WGC200 Dixon Valve 304 Stainless Steel Dairy Sanitary Clamp - 2" Tube OD

  • $8.12

Features:
  • Thumb screw finger tight.
Safety Notes:
  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
Part Number Tube OD Service Pressure Rating @ 70 deg. F Service Pressure Rating @ 250 deg. F Dimension A Weight (Lbs.)
13WGC100-150 1" - 1-1/2" 100 75 2.080 0.1235
13WGC200 2" 100 75 2.610 0.1500
13WGC250 2-1/2" 100 75 3.140 0.1735
13WGC300 3" 100 75 3.670 0.1970
13WGC400 4" 100 75 4.780 0.2500
