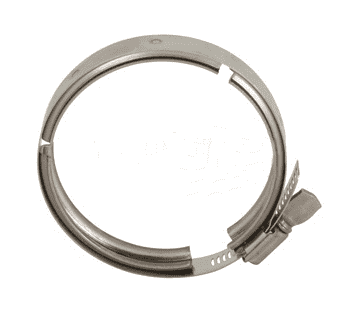

13WGC250 Dixon 304 Stainless Steel Dairy Sanitary Clamp - 2-1/2" Tube OD

13WGC250 Dixon Valve 304 Stainless Steel Dairy Sanitary Clamp - 2-1/2" Tube OD

$14.23 - $14.23
$14.23
$14.41
$14.41 - $14.41
$14.41

Dixon Sanitary Clamps - Dairy Clamp - 304 Stainless Steel

Specifications for Variant SKU: 13WGC250 Dixon
Material(s): 304 Stainless Steel
Maximum Clamp I.D.: 2.5
Features:
  • Thumb screw finger tight.
Safety Notes:
  • Service pressure ratings are based on the following parameters: matching elastomer gaskets and weld ferrules properly aligned and assembled with the clamps tightened to required torques. Tests are done hydrostatically with no water hammer or shock loads.
  • Please note the pressure ratings of the described unions may be above the recommended pipe line operating pressures.
Part Number Tube OD Service Pressure
Rating PSI
@ 70 deg. F		 Service Pressure
Rating PSI
@ 250 deg. F		 Dimension A
(in)
Weight
(Lbs.)
13WGC100-150 1" - 1-1/2" 100 75 2.080 0.1235
13WGC200 2" 100 75 2.610 0.1500
13WGC250 2-1/2" 100 75 3.140 0.1735
13WGC300 3" 100 75 3.670 0.1970
13WGC400 4" 100 75 4.780 0.2500
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
