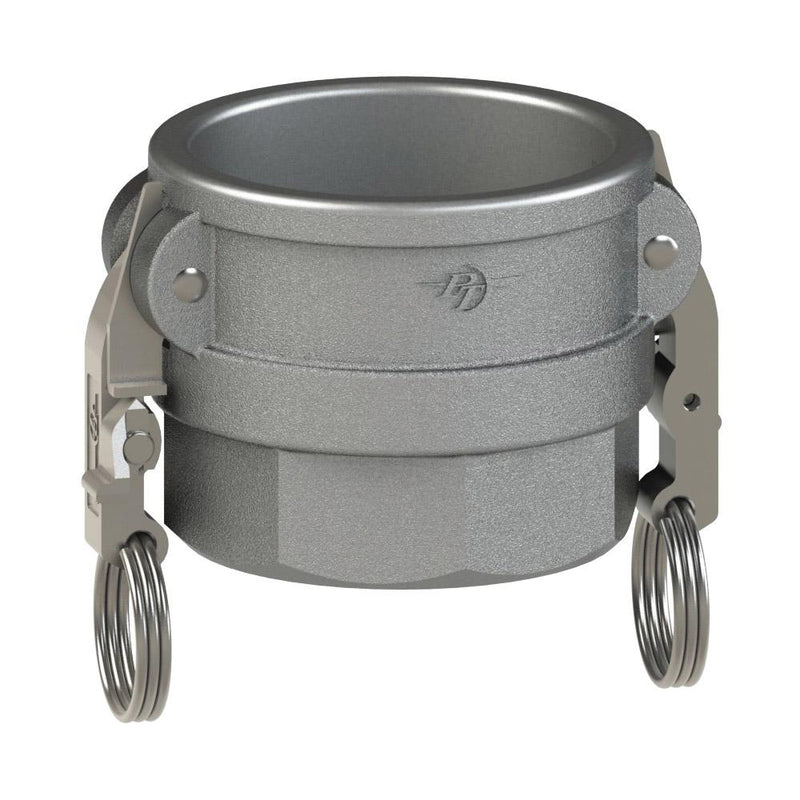

1400460L2 (60D SLII) by PT-Coupling | STA-LOK® II Cam & Groove Adapter | Type D | 6" Coupler x 6" Female NPT | 316 Stainless Steel | Buna-N Seal

Save $324.11

$873.15

$873.15 - $873.15

$873.15

$549.04

$549.04 - $549.04

$549.04

PT Coupling
STA-LOK® II Cam & Groove (Camlock) Adapter | Type D | Coupler x Female NPT | 316 Stainless Steel | Buna-N Seal

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1400460L2 PT-Coupling
Series:	STA-LOK II
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	6in Female Cam & Groove, 6in Female NPT
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile

Overview:
STA-LOK® II is a passive locking feature that automatically locks the handle into place, if it is fully closed. To open the handles there are manual quick release levers. Proper use of this mechanism can help prevent spills by keeping the cam arms from opening under adverse conditions, such as high vibrations, pulsing, wear, and hazardous materials. STA-LOK® II couplers meet the Coast Guard ASTM 1122-87 specifications for Quick Disconnect Couplers.
Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Made in the USA


Part Name	Item #	Coupler Size	Female NPT Thread	O. D. with Cam Arms Extended (A)	Outside Diameter (B)	Overall Length (C)	Inside Diameter (E)	Max. Allowable Working Press. (PSI)*
10D SLII	1400410L2	1"	1"	5.10"	2.44"	2.50"	0.97"	250 PSI
12D SLII	1400412L2	1-1/4"	1-1/4"	6.86"	3.26"	2.70"	1.25"	250 PSI
15D SLII	1400415L2	1-1/2"	1-1/2"	7.16"	3.56"	2.80"	1.50"	250 PSI
20D SLII	1400420L2	2"	2"	7.54"	3.94"	3.10"	1.88"	250 PSI
25D SLII	1400425L2	2-1/2"	2-1/2"	8.03"	4.43"	3.40"	2.38"	200 PSI
30D SLII	1400430L2	3"	3"	9.56"	5.46"	3.50"	2.88"	200 PSI
40D SLII	1400440L2	4"	4"	10.66"	6.56"	3.90"	3.60"	150 PSI
50D SLII	1400450L2	5"	5"	11.67"	7.57"	4.10"	4.50"	75 PSI
60D SLII	1400460L2	6"	6"	16.26"	10.16"	4.40"	5.50"	75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
