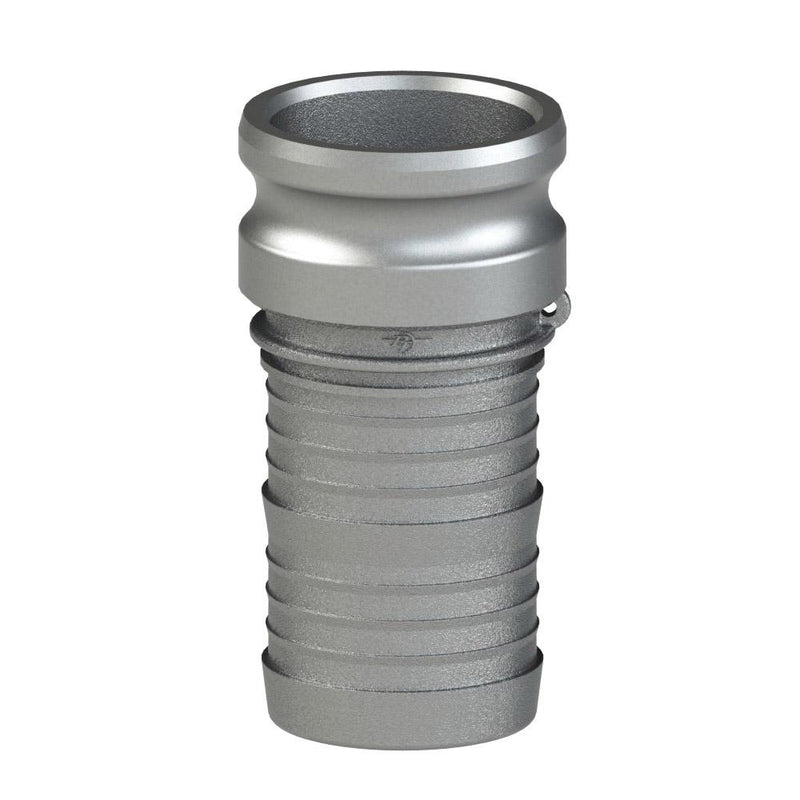

1400560 (60E) by PT-Coupling | Cam & Groove Fitting | Type E | 6" Adapter x 6" Hose Shank | 316 Stainless Steel

1400560 (60E) by PT-Coupling | Cam & Groove Fitting | Type E | 6" Adapter x 6" Hose Shank | 316 Stainless Steel

Save $237.96 Save $237.96
$641.07
$641.07 - $641.07
$641.07
$403.11
$403.11 - $403.11
$403.11

PT Coupling
Cam and Groove (Camlock) Fitting | Type E | Adapter x Hose Shank | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 1400560 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 6in Male Cam & Groove, 6in Hose Barb
Material(s): 316 Stainless Steel
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • PT hose shanks are the most versatile for attaching to hose. The specially designed multibarbed shank allows for attachment via original PUNCH-LOK® center punch clamps, or by an interlocked PROGRIP™ C-50 ferrule or sleeve.
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Couplings not interchangeable in the industry are sizes 8" through 12".
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Hose Shank
Size		 Outside
Diameter
(B)		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*
E05E 1400501 1/2" 1/2" 0.96" 2.56" 1.11" 0.38" 1.03" 250 PSI
1/2E 1400505 3/4" 1/2" 1.26" 3.21" 1.46" 0.35" 0.97" 250 PSI
07E 1400507 3/4" 3/4" 1.26" 3.78" 1.46" 0.53" 0.97" 250 PSI
10E 1400510 1" 1" 1.63" 4.30" 1.8" 0.88" 1.19" 250 PSI
12E 1400512 1-1/4" 1-1/4" 2.00" 4.90" 2.35" 0.97" 1.44" 250 PSI
15E 1400515 1-1/2" 1-1/2" 2.14" 5.10" 2.15" 1.19" 1.48" 250 PSI
20E 1400520 2" 2" 2.64" 5.75" 2.40" 1.68" 1.75" 250 PSI
25E 1400525 2-1/2" 2-1/2" 3.07" 6.63" 2.47" 2.13" 1.75" 200 PSI
30E 1400530 3" 3" 3.70" 6.88" 2.53" 2.62" 1.84" 200 PSI
40E 1400540 4" 4" 4.71" 7.20" 2.60" 3.50" 1.87" 150 PSI
50E 1400550 5" 5" 6.56" 7.56" 2.81" 4.53" 1.97" 75 PSI
60E 1400560 6" 6" 7.10" 10.10" 3.3" 5.53" 2.19" 75 PSI
80E 1400580 8" 8" 9.10" 10.10" 3.3" 7.53" 2.15" 50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
