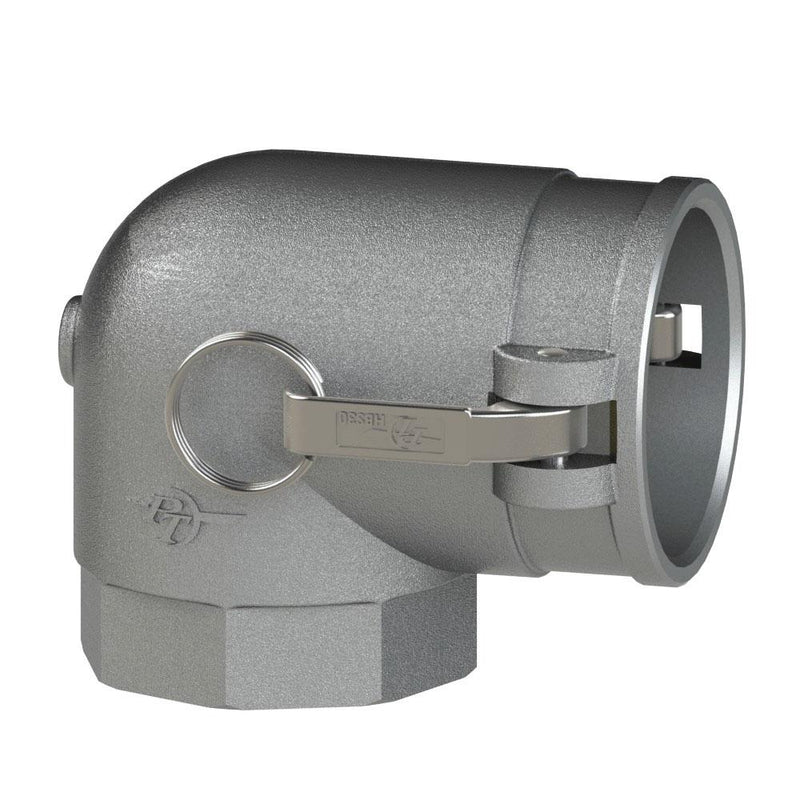

1400720 (20G) by PT-Coupling | Cam & Groove Adapter with Check Valve | Type G | 90° Elbow | 2" Female NPT x 2" Coupler | 316 Stainless Steel | Buna-N Seal

Save $168.23

$453.20

$453.20 - $453.20

$453.20

$284.97

$284.97 - $284.97

$284.97

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1400720 PT-Coupling
Shape (Orientation):	90 Degree Elbow
Cam Type:	Type D
Ends Configuration:	2in Female NPT, 2in Female Cam & Groove
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Stainless Steel G-Elbows are assembled with stainless Steel check valve assemblies. Less than 5 PSI required to start flow in the full flow direction. Made in the USA


Part Name	Item #	Orientation	Female NPT Thread	Coupler Size	Max. Allowable Working Press. (PSI)*
10G	1400710	90°	1"	1"	250 PSI
20G	1400720	90°	2"	2"	250 PSI
25G	1400725	90°	2-1/2"	2-1/2"	200 PSI
30G	1400730	90°	3"	3"	200 PSI
40G	1400740	90°	4"	4"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
