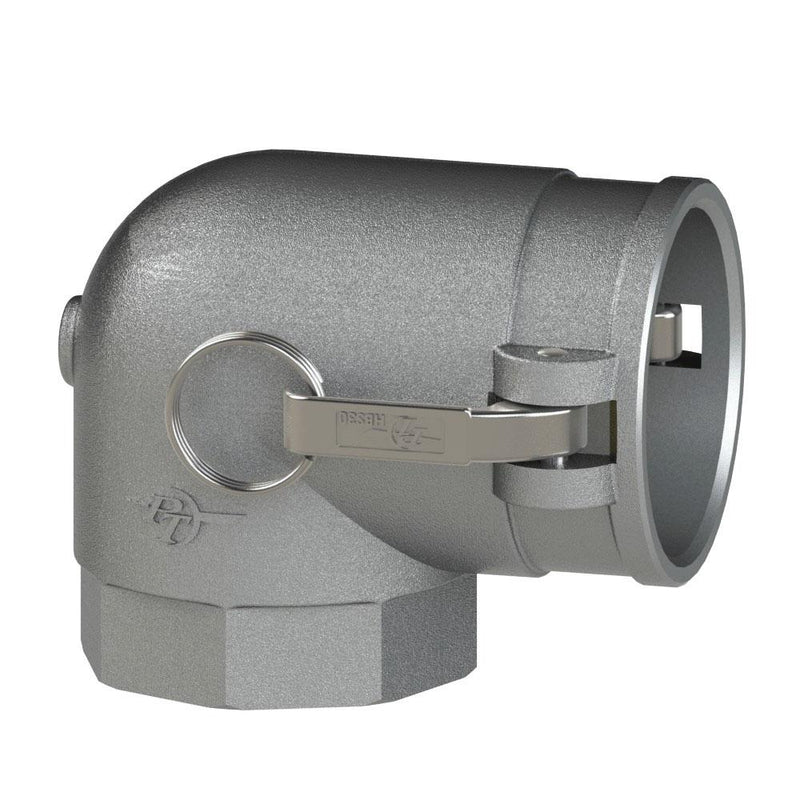

1400740 (40G) by PT-Coupling | Cam & Groove Adapter with Check Valve | Type G | 90° Elbow | 4" Female NPT x 4" Coupler | 316 Stainless Steel | Buna-N Seal

Save $362.71

$977.15

$977.15 - $977.15

$977.15

$614.44

$614.44 - $614.44

$614.44

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 1400740 PT-Coupling
Shape (Orientation):	90 Degree Elbow
Cam Type:	Type D
Ends Configuration:	4in Female NPT, 4in Female Cam & Groove
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile

Features & Applications:
Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass. Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants. Stainless Steel G-Elbows are assembled with stainless Steel check valve assemblies. Less than 5 PSI required to start flow in the full flow direction. Made in the USA


Part Name	Item #	Orientation	Female NPT Thread	Coupler Size	Max. Allowable Working Press. (PSI)*
10G	1400710	90°	1"	1"	250 PSI
20G	1400720	90°	2"	2"	250 PSI
25G	1400725	90°	2-1/2"	2-1/2"	200 PSI
30G	1400730	90°	3"	3"	200 PSI
40G	1400740	90°	4"	4"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
