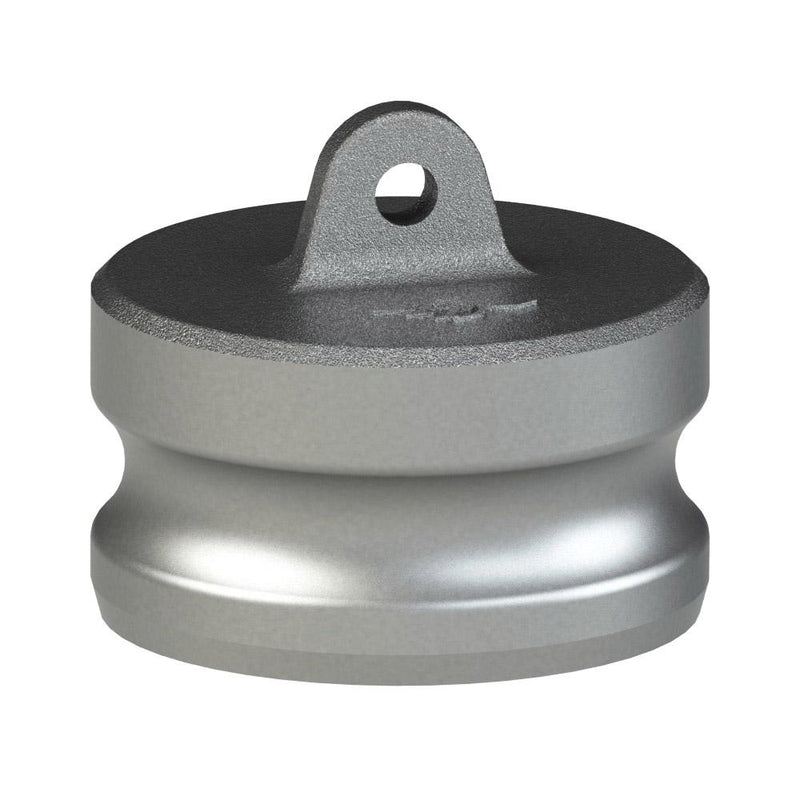

1401260 (60W) by PT-Coupling | Cam & Groove Dust Plug | Type W | 6" Adapter | 316 Stainless Steel

1401260 (60W) by PT-Coupling | Cam & Groove Dust Plug | Type W | 6" Adapter | 316 Stainless Steel

Save $159.54 Save $159.54
$429.78
$429.78 - $429.78
$429.78
$270.24
$270.24 - $270.24
$270.24

PT Coupling
Cam and Groove (Camlock) Dust Plug | Type W | 316 Stainless Steel

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Specifications for Variant SKU: 1401260 PT-Coupling
Cam Type: Type DP
Ends Configuration: 6in Male Cam & Groove
Material(s): 316 Stainless Steel
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Couplings not interchangeable in the industry are sizes 8" through 12"
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Overall
Length
(C)		 Chain Lug
Extension
(G)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*
E05W 1401201 1/2" 1.06" 0.50" 1.03" 250 PSI
07W 1401207 3/4" 1.41" 0.59" 0.97" 250 PSI
10W 1401210 1" 1.35" 0.96" 1.19" 250 PSI
12W 1401212 1-1/4" 1.94" 0.62" 1.44" 250 PSI
15W 1401215 1-1/2" 2.06" 0.50" 1.48" 250 PSI
20W 1401220 2" 1.90" 0.70" 1.75" 250 PSI
25W 1401225 2-1/2" 2.44" 0.81" 1.75" 200 PSI
30W 1401230 3" 2.03" 1.00" 1.84" 200 PSI
40W 1401240 4" 2.10" 1.00" 1.87" 150 PSI
50W 1401250 5" 2.63" 0.85" 1.97" 75 PSI
60W 1401260 6" 2.28" 1.00" 2.19" 75 PSI
80W 1401280 8" 2.28" 1.18" 2.15" 50 PSI
100W 1401290 10" 3.00" 0.90" 2.55" 50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
