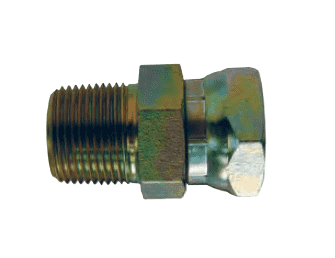

1404-24-24 Dixon Zinc Plated Steel 1-1/2"-11-1/2 Male NPTF x 1-1/2"-11-1/2 Female NPSM Swivel Nut

1404-24-24 Dixon Valve Zinc Plated Steel 1-1/2"-11-1/2 Male NPTF x 1-1/2"-11-1/2 Female NPSM Swivel Nut

Save $16.59 Save $16.59
$41.47
$41.47 - $41.47
$41.47
$24.88
$24.88 - $24.88
$24.88

NPT Fittings - Male NPTF x Female NPSM Swivel Nut - Zinc Plated Steel
Specifications for Variant SKU: 1404-24-24 Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPTF, 1-1/2in Female NPSM
Material(s): Zink-Plated Steel
Features:
  • Designed to prevent hose stress due to twisting during assembly.
  • Female NPSM swivel seals on a 30 deg. seat.
  • Compact design provides ease of assembly in confining areas.
  • Male NPTF must have a 30 deg. chamfer to seal.
Part Number Male NPTF Female NPSM Swivel Working Pressure Weight (Lbs.)
1404-2-2 1/8"-27 1/8"-27 5000 PSI 0.0500
1404-2-4 1/8"-27 1/4"-18 4500 PSI 0.0750
1404-4-4 1/4"-18 1/4"-18 4500 PSI 0.0850
1404-4-6 1/4"-18 3/8"-18 4000 PSI 0.1200
1404-6-4 3/8"-18 1/4"-18 4000 PSI 0.1200
1404-6-6 3/8"-18 3/8"-18 4000 PSI 0.1400
1404-6-8 3/8"-18 1/2"-14 4000 PSI 0.9700
1404-8-6 1/2"-14 3/8"-18 3000 PSI 0.2050
1404-8-8 1/2"-14 1/2"-14 3000 PSI 0.2200
1404-8-12 1/2"-14 3/4"-14 3000 PSI 0.2300
1404-12-8 3/4"-14 1/2"-14 2500 PSI 0.3000
1404-12-12 3/4"-14 3/4"-14 2500 PSI 0.3450
1404-16-16 1"-11-1/2 1"-11-1/2 2000 PSI 0.5250
1404-20-20 1-1/4"-11-1/2 1-1/4"-11-1/2 1150 PSI 0.8300
1404-24-24 1-1/2"-11-1/2 1-1/2"-11-1/2 1000 PSI 1.1400
1404-32-32 2"-11-1/2 2"-11-1/2 1000 PSI 1.4850
