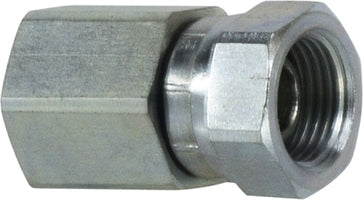

14051612 (1405-16-12) Midland Hydraulic Female Swivel Adapter - 1" Female Pipe x 3/4" Female NPSM - Steel

14051612 by Midland | Hydraulic Swivel | 1" Female Pipe x 3/4" Female NPSM | Adapter | Steel

Save $1.23 Save $1.23
$11.06
$11.06 - $11.06
$11.06
$9.83
$9.83 - $9.83
$9.83

Midland Industries
Hydraulic Adapters: Female Swivel Adapter - Female Pipe x Female NPSM - Steel

Inventory @ Manufacturers Warehouse: 58 Units
Specifications for Variant SKU: 14051612 Midland
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 3/4in Female NPSM
Material(s): Steel
Applicable Specs & Approvals: Applicable SAE Standards
Specifications:
  • SAE 140131
Technical Info:
Crossover Series:
1405 2046R 1212 9255 C207
Part Number Female Pipe
(1)		 Female NPSM
(2)
140522
(1405-2-2)		 1/8" 1/8"
140542 1/4" 1/8"
140544
(1405-4-4)		 1/4" 1/4"
140546 1/4" 3/8"
140564
(1405-6-4)		 3/8" 1/4"
140566
(1405-6-6)		 3/8" 3/8"
140568
(1405-6-8)		 3/8" 1/2"
140584
(1405-8-4)		 1/2" 1/4"
140588
(1405-8-8)		 1/2" 1/2"
1405812 1/2" 3/4"
1405128 3/4" 1/2"
14051212
(1405-12-12)		 3/4" 3/4"
14051216 3/4" 1"
14051612
(1405-16-12)		 1" 3/4"
14051616
(1405-16-16)		 1" 1"
14052020
(1405-20-20)		 1-1/4" 1-1/4"
14052424
(1405-24-24)		 1-1/2" 1-1/2"
14053232
(1405-32-32)		 2" 2"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
