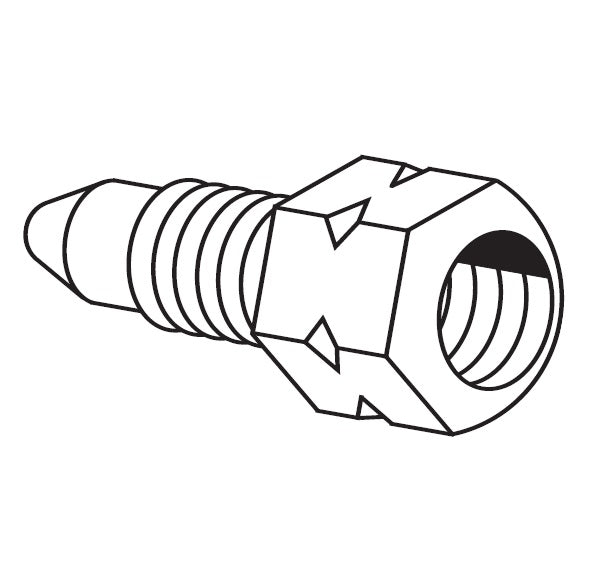

1442 by Danfoss | Hydraulic Brake Metric Adapter | 10mm Male Bubble Metric x 3/16" Female UNF | Brass

1442 by Danfoss | Hydraulic Brake Metric Adapter | 10mm Male Bubble Metric x 3/16" Female UNF | Brass

$1.78 - $1.78
$1.78
$1.78 - $1.78
$1.78

Aeroquip® by Danfoss
Hydraulic Brake Adapter - Metric Adapter - Straight
Specifications for Variant SKU: 1442 Danfoss
Shape (Orientation): Tee
Material(s): Brass
Note:
  • Metric threads are measured and specified by the thread diameter in millimeters and the pitch in millimeters per thread.
    If dimension "A" is 22mm and dimension "B" (crest to crest distance) is 1.5mm, then the metric thread size is M22 x 1.5.
Brass
Part Number 		Bubble Male Thread Tube O.D./Female Thread Use with Brake Line
1442 M10 x 1.0 3/16 (3/8-24) S Series (Standard Flare)
7935 M11 x 1.5 3/16 (M10 x 1.0) SJ Series (Standard Flare)
7936 M12 x 1.0 3/16 (M10 x 1.0) SJ Series (Standard Flare)
7937 M13 x 1.5 3/16 (M10 x 1.0) SJ Series (Standard Flare)
