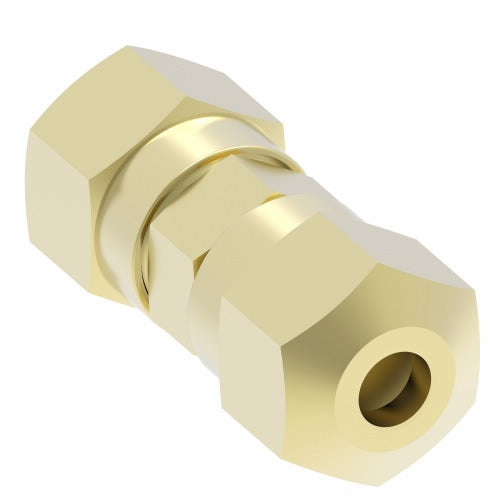

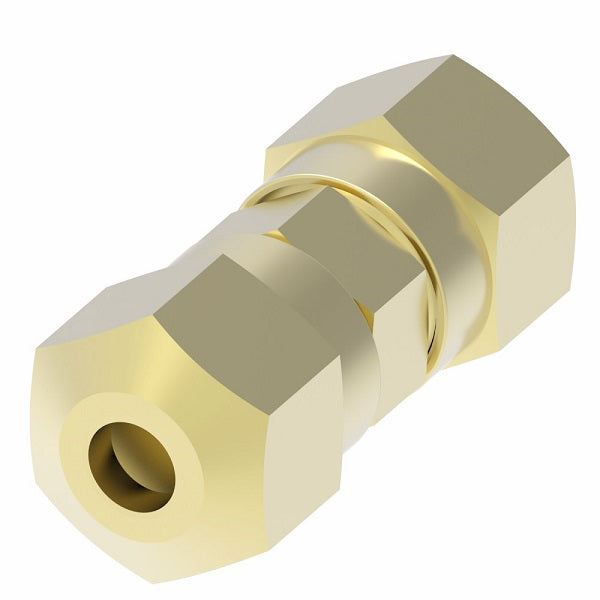

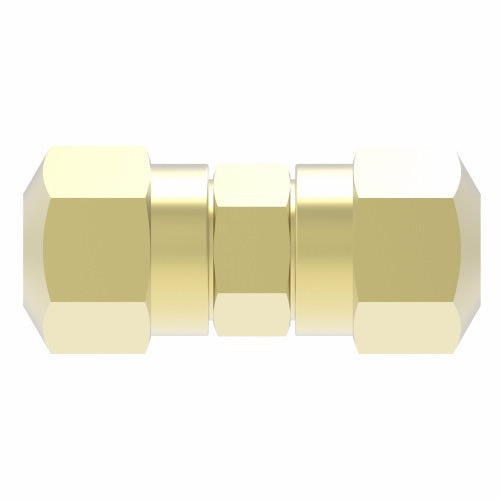

1462X4 by Danfoss | Air Brake Adapter for Nylon Tubing | Union | 1/4" Tube OD x 1/4" Tube OD | Brass
1462X4 by Danfoss | Air Brake Adapter for Nylon Tubing | Union | 1/4" Tube OD x 1/4" Tube OD | Brass
1462X4 by Danfoss | Air Brake Adapter for Nylon Tubing | Union | 1/4" Tube OD x 1/4" Tube OD | Brass
1462X4 by Danfoss | Air Brake Adapter for Nylon Tubing | Union | 1/4" Tube OD x 1/4" Tube OD | Brass

1462X4 by Danfoss | Air Brake Adapter for Nylon Tubing | Union | 1/4" Tube OD x 1/4" Tube OD | Brass

$9.60 - $9.60
$9.60
$9.60 - $9.60
$9.60

Aeroquip® by Danfoss
Air Brake Adapter for Nylon Tubing - Union
Specifications for Variant SKU: 1462X4 Danfoss
Material(s): Brass
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
Advantages:
  • Easy to assemble (no tube preparation or flaring required.)
  • Built in tube support.
  • May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve.
  • Insert should be removed for copper tubing use.
  • Fair Vibration Resistance.
Used With:
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. 100101BA
  • Meets specifications and standards of SAE and DOT FMVSS 571.106.
Tube O.D. 1/4" 3/8" 1/2" 5/8" 3/4"
Thread Size 7/16-24 17/32-24 11/16-20 13/16-18 1-18
Brass
Part Number 		Tube O.D. Hex
C		 L
1462X4 1/4" 7/16" 0.85"
1462X6 3/8" 9/16" 1.10"
1462X8 1/2" 11/16" 1.31"
1462X10 5/8" 13/16" 1.43"
1462X12 3/4" 1" 1.60"
