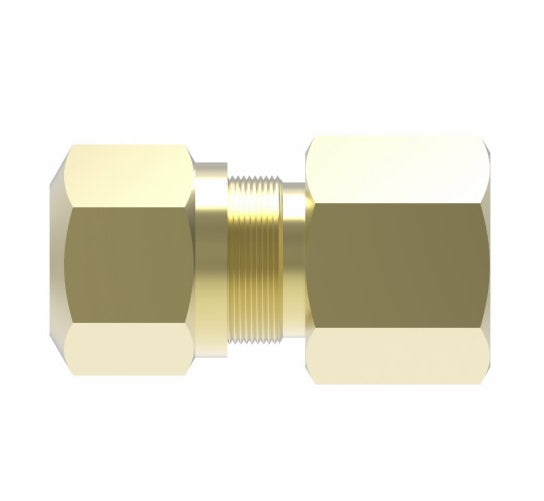

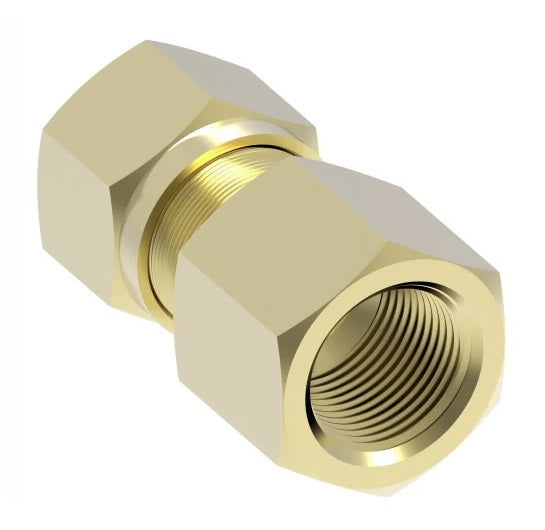

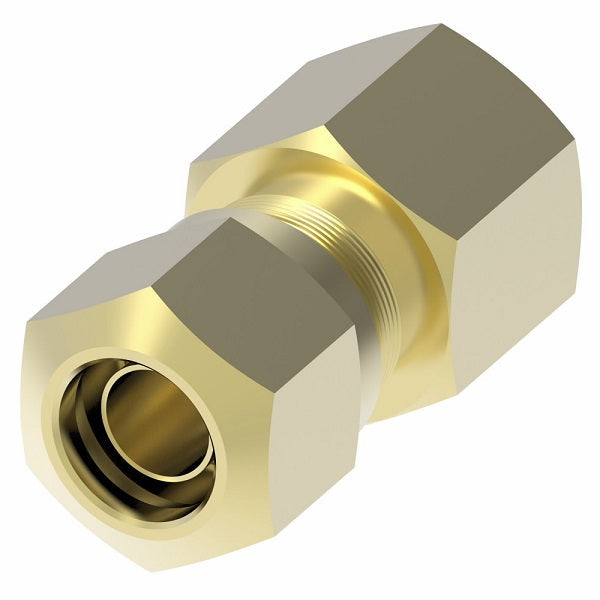

1466X6X6 by Danfoss | Air Brake Adapter for Nylon Tubing | Female Connector | 3/8" Tube OD x 3/8" Female Pipe| Brass
1466X6X6 by Danfoss | Air Brake Adapter for Nylon Tubing | Female Connector | 3/8" Tube OD x 3/8" Female Pipe | Brass
1466X6X6 by Danfoss | Air Brake Adapter for Nylon Tubing | Female Connector | 3/8" Tube OD x 3/8" Female Pipe | Brass
1466X6X6 by Danfoss | Air Brake Adapter for Nylon Tubing | Female Connector | 3/8" Tube OD x 3/8" Female Pipe| Brass

1466X6X6 by Danfoss | Air Brake Adapter for Nylon Tubing | Female Connector | 3/8" Tube OD x 3/8" Female Pipe | Brass

$11.92 - $11.92
$11.92
$11.92 - $11.92
$11.92

Aeroquip® by Danfoss
Air Brake Adapter for Nylon Tubing - Female Connector
Specifications for Variant SKU: 1466X6X6 Danfoss
Material(s): Brass
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
Advantages:
  • Easy to assemble (no tube preparation or flaring required.)
  • Built in tube support.
  • May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve.
  • Insert should be removed for copper tubing use.
  • Fair Vibration Resistance.
Used With:
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. 100103BA
  • Meets specifications and standards of SAE and DOT FMVSS 571.106.
Tube O.D. 1/4" 3/8" 1/2" 5/8" 3/4"
Thread Size 7/16-24 17/32-24 11/16-20 13/16-18 1-18
Brass
Part Number 		Tube O.D. Male Pipe
Thread		 Hex
C		 D1 L
1466X4 1/4" 1/8" 9/16" 0.85"
1466X6 3/8" 1/4" 11/16" 1.19"
1466X6X6 3/8" 3/8" 7/8" 1.19"
1466X8 1/2" 3/8" 7/8" 1.28"
