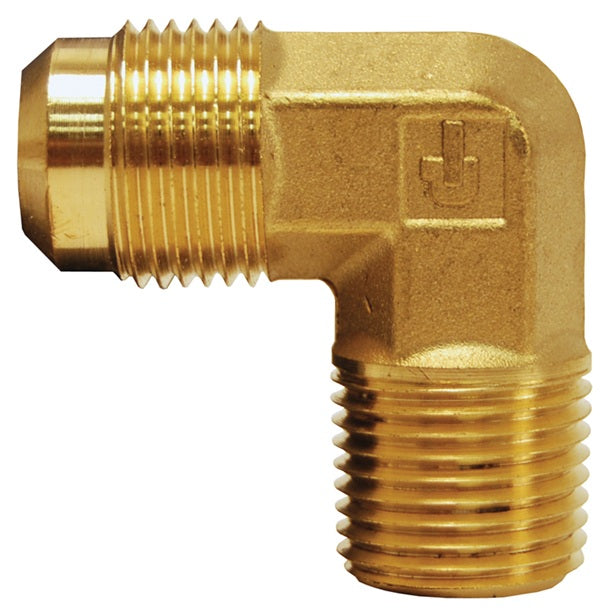

149F-6-6 by Dixon Valve | SAE 45° Flare Male Adapter | 90° Elbow | 3/8" Male SAE 45° Flare x 3/8" Male NPT | Brass

149F-6-6 by Dixon Valve | SAE 45° Flare Male Adapter | 90° Elbow | 3/8" Male SAE 45° Flare x 3/8" Male NPT | Brass

Save $0.91 Save $0.91
$9.63
$9.63 - $9.63
$9.63
$8.72
$8.72 - $8.72
$8.72

Dixon Valve
SAE 45° Flare Male Adapter | 90° Elbow | Male SAE 45° Flare x Male NPT

For use with copper, brass, aluminum, and welded steel hydraulic tubing that can be flared.

For use with hard-to-hold liquids and gases.
Specifications for Variant SKU: 149F-6-6 Dixon
Series: 149F Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Male SAE 45 Flare, 3/8in Male NPT
Material(s): Brass
Features:
  • Economical fitting
  • Resists mechanical pullout
  • Easy to disassemble and may be reassembled repeatedly, for a leak-proof connection
Material:
  • Manufactured from CA 360, CA 345, or CA377 brass.
Approvals:
  • Reference SAE 010202
  • Listed with UL for flammable liquid, marine, refrigeration, and gas applications
  • Meets functional requirements of SAE J512 and J513, ASA, and MS (Military Standards)
Specifications:
  • Temperature range: -65°F to 250°F (-54°C to 121°C)
Working Pressure Ranges:
  • Temperature and type of tubing used are important factors. The following table is a general guide for proper selection. The PSI rating given is based on a temperature of 73°F (22°C) using copper tubing.
    • PSI Tube O.D. Tube Wall
    1400 PSI 1/4" .030
    1000 PSI 3/8" .032
    750 PSI 1/2" .032
    650 PSI 5/8" .035
    550 PSI 3/4" .035
Assembly Instructions:
  • 1. Cut tubing squarely, and clean tube end thoroughly to remove burrs.
  • 2. Place nut onto tube. Place threaded end of nut toward end of tube.
  • 3. Flare tube end with flaring tool to provide 45° flare. (Flare tools are available. Please contact Dixon® for pricing and availability.)
  • 4. Clamp tube flare between nut and nose of fitting body by screwing nut on finger-tight. Tighten with a wrench an additional 1/4 turn for a metal-to-metal seal.
Part Number Tube Size Pipe Size Straight Thread
149F-4-2 1/4" 1/8" 7/16"-20
149F-4-4 1/4" 1/4" 7/16"-20
149F-4-6 1/4" 3/8" 7/16"-20
149F-6-4 3/8" 1/4" 5/8"-18
149F-6-6 3/8" 3/8" 5/8"-18
149F-6-8 3/8" 1/2" 5/8"-18
149F-8-4 1/2" 1/4" 3/4"-16
149F-8-6 1/2" 3/8" 3/4"-16
149F-8-8 1/2" 1/2" 3/4"-16
149F-10-8 5/8" 1/2" 7/8"-14
149F-12-12 3/4" 3/4" 1-1/16"-14
